Zither Accuracy Adjustment Chuck AAC-3

Zither Accuracy Adjustment Chuck AAC-3

Price :
₹ 9915.00
GST inclusive
Model:
Quantity:
Add to Cart

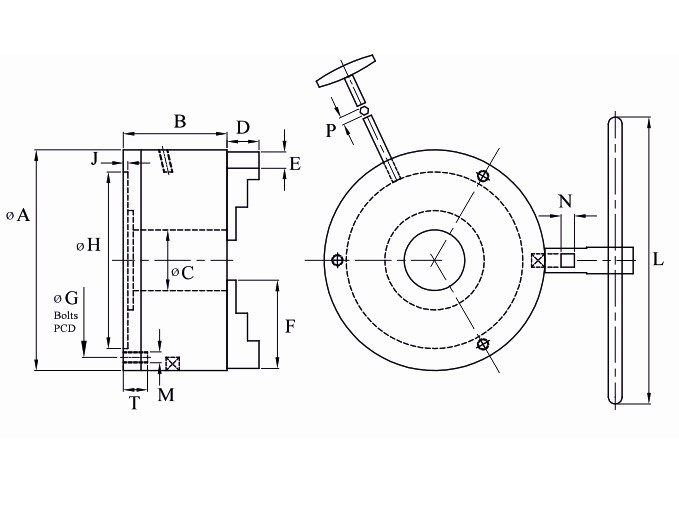

Size

A

B

C(Bore)

D

E

F

G(PCD)

H(H7)

J

M

L

N

T

P

Weight 3Jaw kgs

100

103

65

26

17

15

37

89

76.2

3

M6

175

8

12

5

3.9

200

200

94

55

29

22

80

176

160

4

M10

285

12

22

8

17.0



  • These chucks are available with 3 jaws and 6 jaws and are referred as AAC-3 respectively. These are used where same size of job is to be held repeatedly and accuracy desired is very high. The chuck accuracy can be adjusted within 0.005 mm with the help of micro-adjustment screws. The repetitive accuracy available with these type of chucks is within 0.013 mm. These chucks are used for tool room and grinding shop work. One set of reverse Jaws, Mounting Bolts, Allen Key, Operating Key and Inspection Report is provided with each chuck.
