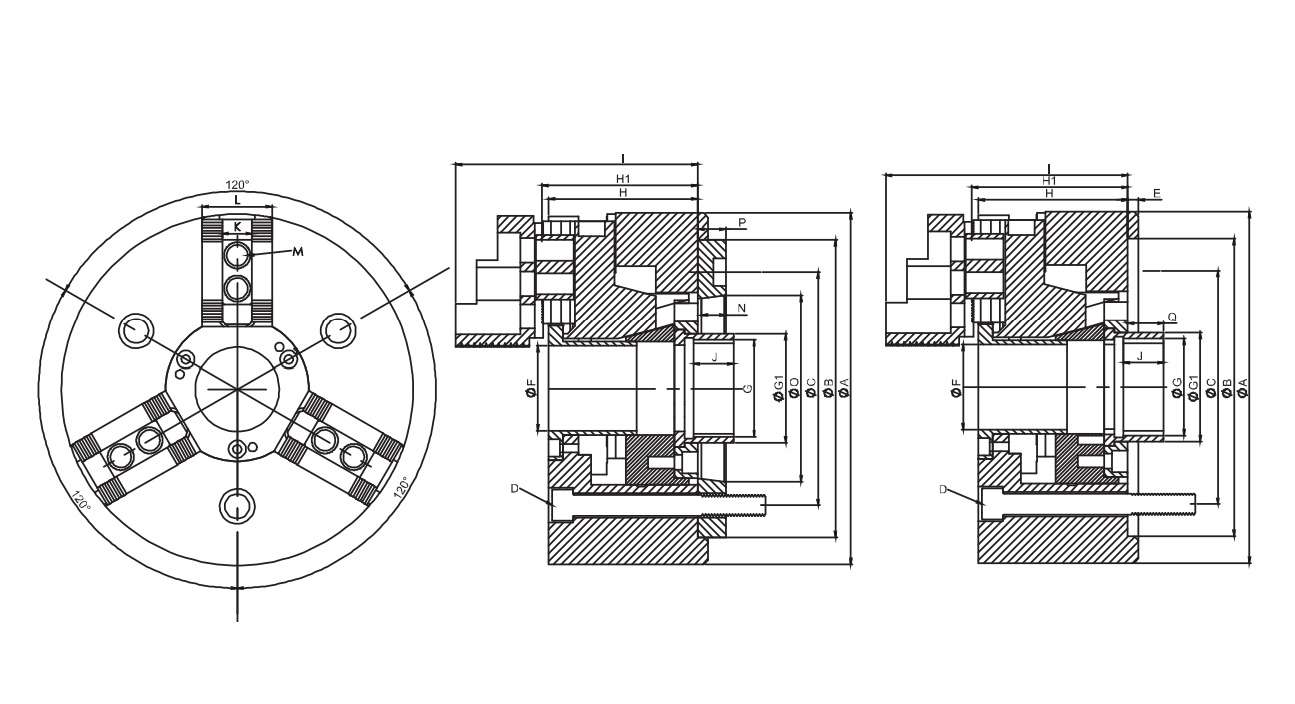

AØ |
Chuck size |
200 |
|
BØH6 |
Recess |
170 |
|
CØ |
Pitch circle diameter (P.C.D) |
133.4 |
|
D |
Mounting bolt |
3xM10 |
|
E |
Recess depth |
6 |
|
FØ |
Bore (I.D) |
48 |
|
G |
Draw nut thread |
M55x2 |
|
G1 |
Draw nut outer diameter |
62 |
|
H |
Height from resting face |
85 |
|
H1 |
H+ master jaws height |
88.5 |
|
I |
H1+top hard jaws height |
146 |
|
J |
Draw nut thread length |
28 |
|
K H7 |
T-slot thickness |
17 |
|
L |
Master jaw thickness |
40 |
|
N |
Taper nose length |
13 |
|
OØ |
Taper nose starting diameter |
106.375 |
|
P |
Mounting plate thickness |
16 |
|
Q |
Draw nut position min |
0.5 |
|
From resting face max |
20.5 |
|
|
serrations |
1/16”x90° |
|
