U350:

Quantity:

Add to Cart

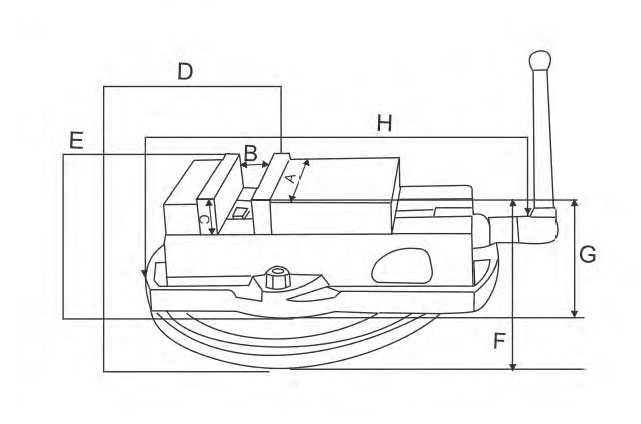

Size in inches		4	5	6	6	8	8
A	Width of jaw in mm	100	125	150	150	200	200
B	Opening of jaw in mm	100	120	150	200	200	250
C	Depth of jaw in mm	40	40	45	45	60	60
D	Width swivel base in mm	225	270	310	310	410	410
E	Width fixed base in mm	175	205	220	220	310	310
F	Height swivel base in mm	140	145	170	170	220	220
G	Height fixed base in mm	100	100	125	125	160	160
H	Length overall in mm	345	375	460	460	595	595
Tenon slot size in mm		16	16	20	20	20	20
Weight (approx.) in kgs swivel base		21	29	48	48	104	104
Weight (approx.) in kgs fixed base		16	21	35	35	74	74
Opening		150	170	215	265	300	350
Opening		230	250	310	360	400	450
Opening		270	295	370	420	490	540

Rigid material vise body of ductile iron.
Fittted with thrust bearing for smooth movement
Unique tilt lock vices can with stannd heavy jobs
Top & bottoms of vice bed, bottom & both sides jaws & all jaw mounting surface are precision ground.
By reversing the jaw plates the jaws are raised & can be fitted to both ends of the fixed jaw & the moveable jaws
The four different position of jaw plates pair are available more gripping area.
Coolant through vise body and swivel base
Chip clearance holes_ _ _ _ _ _ no dead pocket
Swivel handle the screw head revolved on machine table
The vice can be disassenbledand repaired by regrinding
Supplied with stopper for fast production.

Unique Tilt Lock Machine Vice Kurt Type U350
