Unique Super Milling Vice Bridge Port Type Fixed Base U309

Unique Super Milling Vice Bridge Port Type Fixed Base U309

Price :
10487.00
GST inclusive
U309:
Quantity:

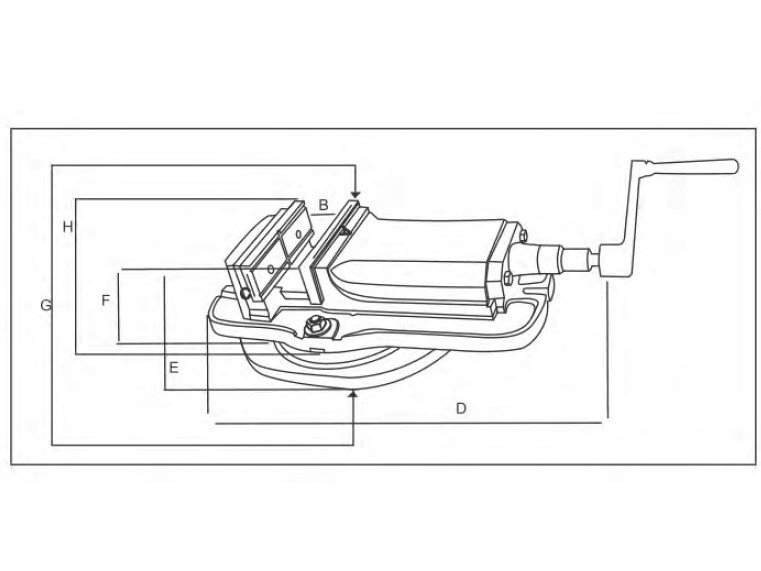

Sizes in Inches

4

5

6

8

A

Width of jaws in mm

100

125

150

200

B

Opening of jaws in mm

100

125

150

200

C

Depth of jaws in mm

45

50

55

65

D

Length overall in mm

344

400

470

610

F

Height overall in mm

90

100

110

120

H

Width overall in mm

165

192

220

275



Tenon Slot Size in mm

16

20

20

20



Weight (Approx) in kgs.

13

20

29

52



  • Fitted with Thrust Bearing for Smooth Movement.
  • Sturdy & accurately made machine vices from graded casting.
  • Fine acme thread screw.
  • Jaws are made of special steel properly hardened, fixed jaw is provided with vertical & horizontal ‘V’ groove to hold the round job firmly.
  • The swivel base is graduated fully through 360º.
  • Vice can be converted from swivel base to fix by removing the base.
  • Quick alignment to machines through longitudinal slot provided in base & body.
  • Crank handle is made of unbreakable steel provided with a spring loaded mechanism providing positive grip.
  • Body is provided with water channel.
  • Depth of jaws is more to hold heavy jobs.
  • Supplied with Stopper for Fast Production.
