Ultra Universal Clamping Magnetic Base With Fine Adjustment UL-504

now

Ultra Universal Clamping Magnetic Base With Fine Adjustment UL-504

Price :
₹ 4130.00
GST inclusive
Model:
Quantity:
Add to Cart

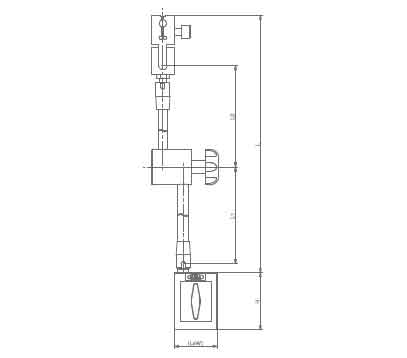

Cat No

Magnetic base size

ARM

L1

L2

Overall height (H+L)

Pulling force

Holding stem

UL-50413

70X48X64mm

291mm

110

355

355

70

DIA8mm

UL-50415

60X50X60mm

290mm

110

350

350

50

DIA8mm

UL-50416

70X48X64mm

345mm

132

409

409

70

DIA8mm

UL-50417

35X30X35mm

175mm

56

210

210

28

DIA8mm



  • Can be locked to any position in 360degree by a central lock.
  • Used as a holding device for dial indicator.
  • Heavy & rigid construction of base & column
  • Center Knob is of metal for extrs life
  • Dovetail slot for lever type dial
  • Fine adjustment for accurate setting
  • Base V can be clamped to shaft of 20 to 120
  • Can hold 8mm (6mm with sleeve) stem diameter of dial
