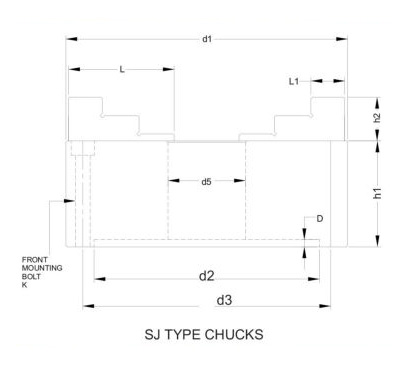

Nominal size d1 |
d2 H7 |
P.C.D |
d5 |
h1 |
h2 |
D |
L |
K |
L1 |
Size of sq of handle |
Thickness of jaw
|
Approx. Wt In kgs SJ3
|
RECCOMENDED R.P.M |
|||
|
d3 |
Tol. on d3 |
Cast iron body |
S.G iron body |
Steel body |
||||||||||||
|
100 |
70 |
83 |
±0.25 |
20 |
50 |
18 |
3 |
42 |
M8 |
14 |
8 |
14 |
2.1 |
2500 |
3200 |
3800 |
Standard jaw chuck are supplied with one set forward & one set reverse these chuck are used in production jobs.
Material composition:-
Body:- Semi steel bodies are manufactured from high tensile grade 25 cast iron hardness 180-210Bhn
Jaws:- jaw are made of law carbon case hardened steel and hardened in mordern heat treatment plant. hardness 50-60HRC
Scroll:- scroll plates are manufactured from forged wear resistant alloy steel hardened 40-45HRC
Pinion:- pinions are made of case hardening alloy steel. hardened 40-45HRC
Special features of turno plus:-
