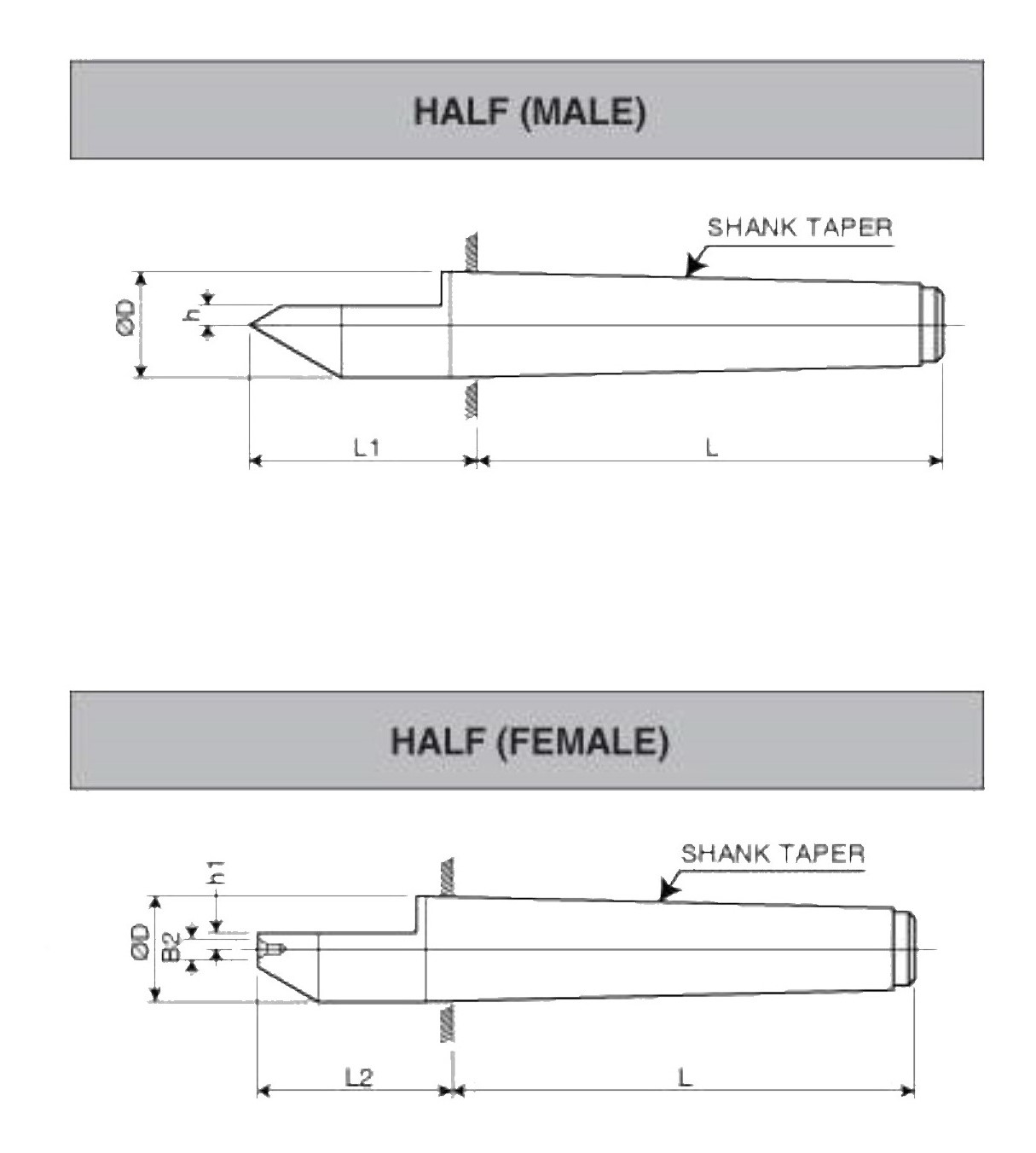

Shank Taper |
MT-1 |
MT-2 |
MT-3 |
MT-4 |
MT-5 |
MT-6 |
|
L |
53.5 |
64.0 |
84.0 |
102.5 |
129.5 |
182.0 |
|
L1 |
26.5 |
36.0 |
44.0 |
57.5 |
70.5 |
88.0 |
|
L2 |
21.5 |
29.0 |
36.0 |
48.0 |
58.5 |
73.0 |
|
L3 |
36.5 |
48.0 |
57.0 |
72.5 |
87.5 |
108.0 |
|
L4 |
- |
- |
70.0 |
83.5 |
90.0 |
- |
|
ØD |
12.2 |
18.0 |
24.1 |
31.6 |
44.7 |
63.8 |
|
ØD1 |
- |
- |
24.1 |
31.6 |
40.0 |
- |
|
Ød |
- |
- |
11.0 |
14.0 |
18.0 |
- |
|
h |
2.0 |
2.6 |
3.450 |
5.2 |
11.650 |
10.1 |
|
h1 |
- |
3.0 |
4.0 |
5.0 |
5.5 |
- |
|
A1 |
5.5 |
8.0 |
9.0 |
11.0 |
14.0 |
17.0 |
|
B1 |
2.5 |
4.0 |
5.0 |
6.0 |
8.0 |
11.0 |
|
B2 |
- |
2.5 |
3.0 |
4.0 |
5.0 |
- |
|
A/F |
10.0 |
14.0 |
19.0 |
27.0 |
36.0 |
55.0 |
|
M(Thread) |
16x1.5 |
22x1.5 |
27x1.5 |
36x1.5 |
48x1.5 |
68x1.5 |
