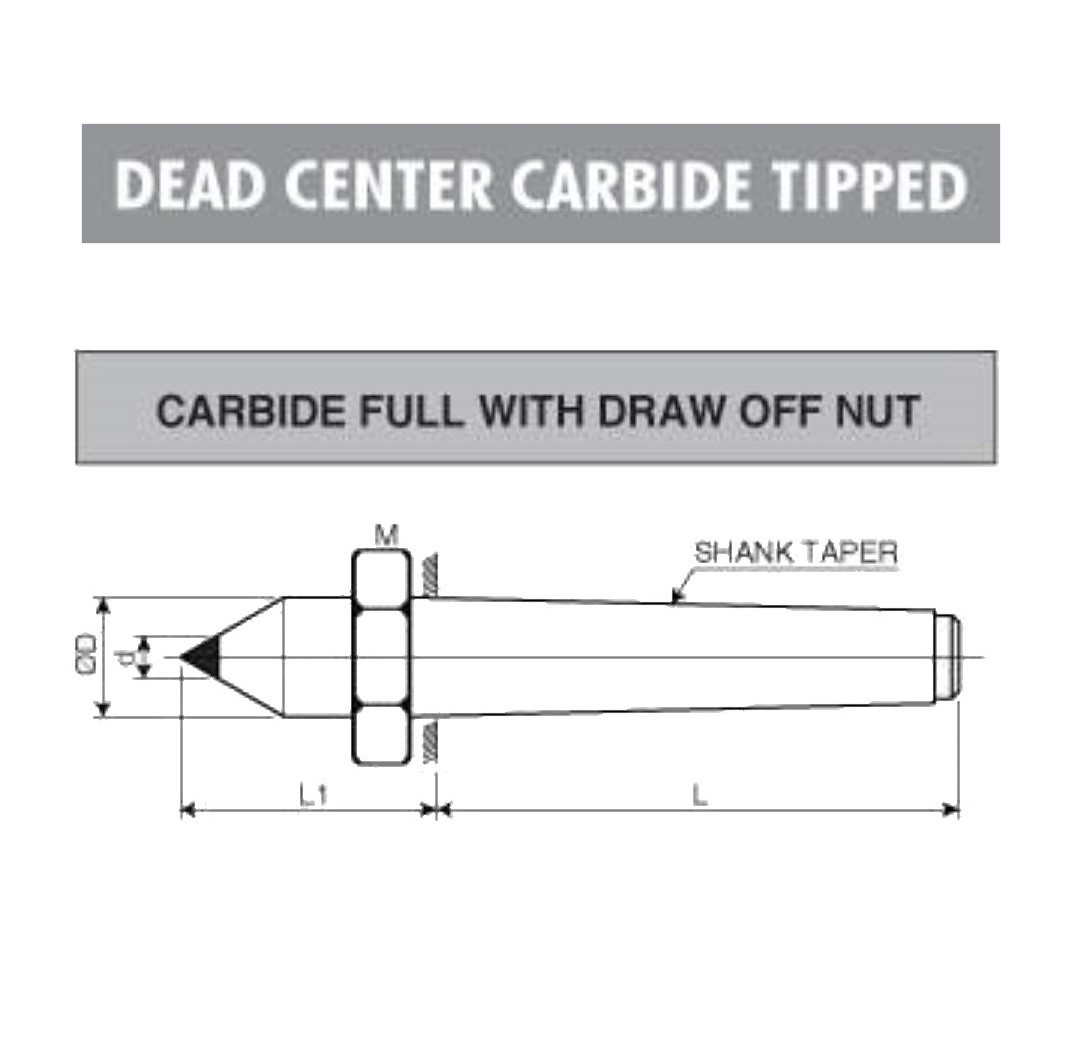

Tooltech CNC Dead Center Full (Made With Draw Of Nut) Extended

Tooltech CNC Dead Center Full (Made With Draw Of Nut) Extended

Price :
₹ 1038.00
GST inclusive
Model:
Quantity:
Add to Cart

Shank Taper

MT-1

MT-2

MT-3

MT-4

MT-5

MT-6

Lmm

53.5

64.5

81.0

102.5

129.5

182.0

L1mm

26.5

36.0

44.0

575

70.5

88.0

L2mm

36.5

48.0

57.0

72.55

87.5

108.0

L4mm

-

-

70.0

83.5

90.0

-

ØDmm

12.2

18.0

24.1

31.6

44.7

63.8

ØD1mm

-

-

24.1

31.6

40.0

-

Ødmm

AD-5

AD-8

AD-11

AD-14

AD-18

AD-18

Ød1mm

-

-

AD-14,18,22

25,28,30,32,

40

AD-18,22,25

28,30,32,40

AD-22,25,28

30,32,40,45

49, 52

AD-22,25,28,

30,32,40,45,

49,52

h1mm

3.15

5.6

7.0

8.7

10.7

11.1

A1mm

10.0

14.0

19.0

27.0

36.0

55.0

M(THREAD)

16x1.5

22x1.5

27x1.5

36x1.5

48x1.5

68x1.5



  • Small size taper upo MT-4 made from bearing steel EN-31 and through hardened to 58-60HRc
  • Big size taper from MT-5 up wards made from 20MnCr5 and case hardened to 58-60HRc
  • Broadly confirms to DIN:807
  • Precision ground. TIP round within 0.015mm W.r.t.m.taper
  • Application:- on CNC lathers with live tail stock. draw off nut to be used to remove/extract the dead center from the tail stock.
  • Standard point angle 60º
