Model |
L |
B |
W |
Height adjustment |
Height of step h1 |
Height of step h2 |
N.W kgs (pair) |
|
|
H min |
H max |
|||||||
|
TSB-1L |
30 |
18 |
24 |
20 |
44 |
2.7 |
1.6 |
0.11 |
|
TSB-2L |
66 |
38 |
24 |
40 |
100 |
2.7 |
1.6 |
0.31 |
|
TSB-3L |
101 |
58 |
24 |
60 |
155 |
2.7 |
1.6 |
1.10 |
|
TSB-1 |
30 |
18 |
30 |
20 |
44 |
2.7 |
1.6 |
0.14 |
|
TSB-2 |
66 |
38 |
30 |
40 |
100 |
2.7 |
1.6 |
0.39 |
|
TSB-3 |
101 |
58 |
30 |
60 |
155 |
2.7 |
1.6 |
1.36 |
|
THSB-5 |
66 |
38 |
48 |
40 |
100 |
2.7 |
1.6 |
0.95 |
|
THSB-6 |
117 |
68 |
48 |
72 |
180 |
2.7 |
1.6 |
2.83 |
Step blocks are used as adjustable supporting blocks at the rear of the clamp while clamping the workpiece different heights can be achieved by used combination of two different sizes of step blocks. available in pair ( pair consists of 2identical step blocks)

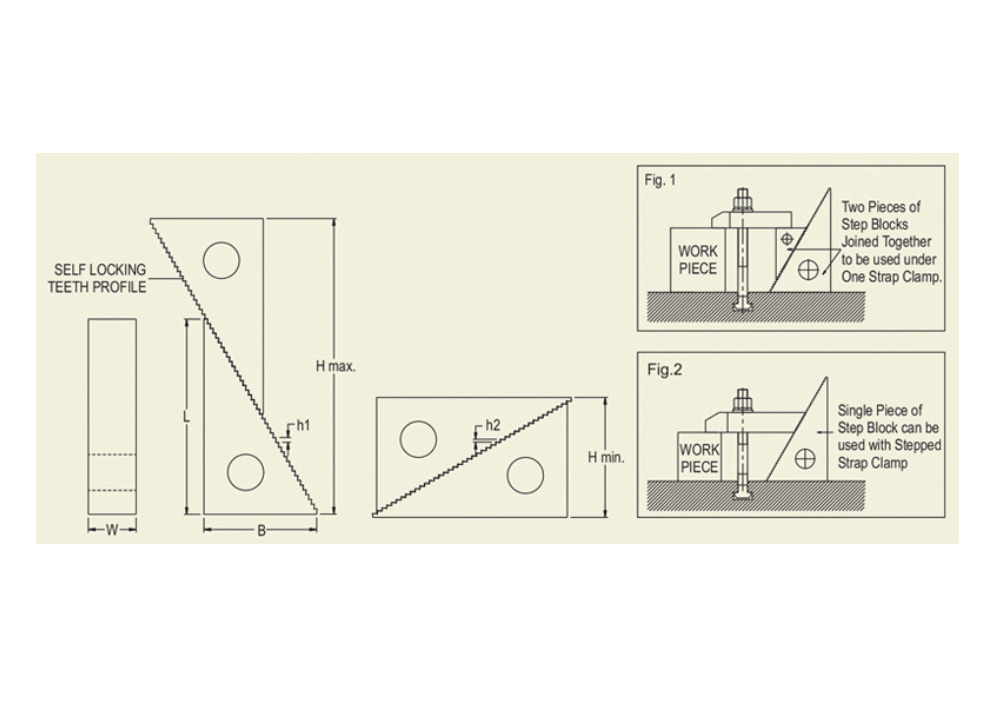

Combination of two step blocks of same or fifferent sizes is kept as support under one strap clamp as shown in fig.1below but in case of use of step blocks with stepped strap clamp as shown in fig.2below only one step block of suitable size is kept as support under one stepped strap clamp
