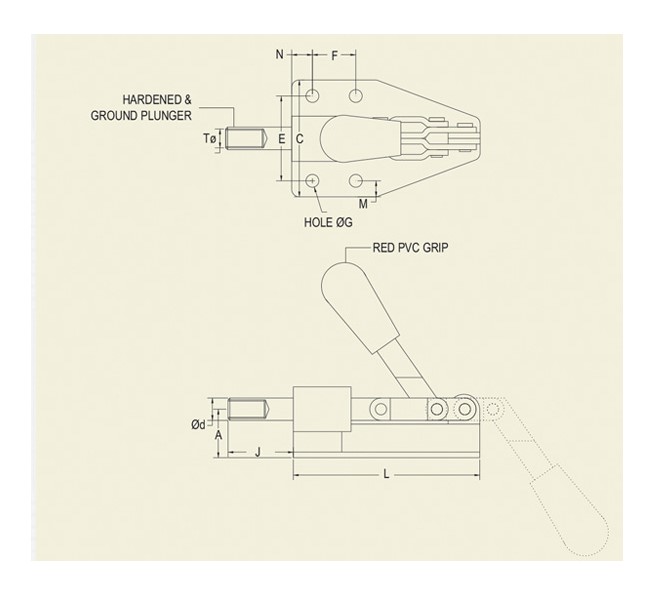

Model |
Plunger Dia dØ |
TØ tapped hole |
Mounting thread size AØ |
Plunger travel B |
C |
D |
J |
L |
W |
H |
Holding capacity |
N.W.Kgs |
|
PAFM-9 |
9 |
M-5x0.8P |
M-16x1.5P |
25 |
11 |
6 |
36 |
35 |
26 |
75 |
50Kg |
0.13 |
|
PAFM-12 |
12 |
M-20x1.5P |
M-20x1.5P |
36 |
16 |
8 |
41 |
50 |
31 |
103 |
100kgs |
0.32 |
|
PAFM-16 |
16 |
M-10x1.5P |
M-24x2.0P |
65 |
25 |
10 |
65 |
84 |
43 |
143 |
350kg |
0.86 |
Push/pull action clamp have a traight line action as the plunger moves in straight line forward & backward with easy to operate handle. the plunger moes forward and lock as the handle is moved forward and plunger also locks in retracted position when handle is moved backward. hence these clmps can be used as push as well as pull action clamps hardened & ground moves in precision machined bare
