Toolfast Mini Pinch Clamp

Toolfast Mini Pinch Clamp

Price :
₹ 1615.00
GST inclusive
Model:
Quantity:
Add to Cart

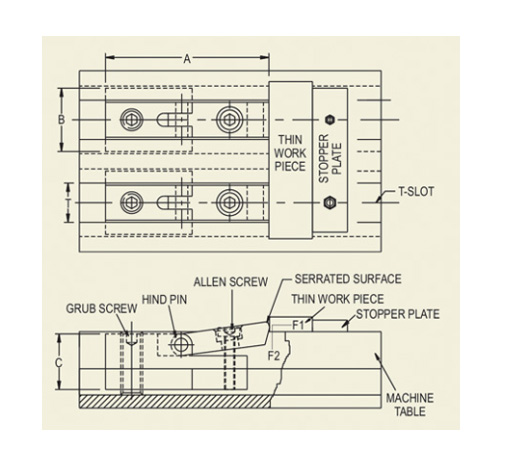

Model

Suitable for

T-slot size T

A

B

C

Clamping force max

N.W kgs

F1

F2

MPC-1

14

65

22

21

400kg

20kg

0.14

MPC-2

16

75

25

23

600kg

25kg

0.20

MPC-3

18

75

28

26

600kg

25kg

0.26



  • Mini pinch clamp is useful for clamping of thin plates from side faces, body made of hardened alloy steel is in the from T-nut which sides easily into the T-slot. when rear screw is tightened. the clamp is held tightly with the t-slot then by tightenin the front bolt it gives a downward as wellas forward clamping force to the job. only a required small portion of the clamp comes above the surface of t-slot table rest of the body of clamp remain under the top surface of the t-slot table hence it can clamp thinnest plates positively and still remain under the top level of the job. this clamp is most suitable for top facing of thin plates on milling shapping and planing machine.
