Model |
Suitable for T-slot size T |
A |
B |
C |
Clamping force max |
N.W Kgs |
|
|
F1 |
F2 |
||||||
|
PC-1A |
12 |
105 |
30 |
15 |
1600kg |
60kg |
0.44 |
|
PC-1B |
14 |
105 |
30 |
15 |
1600kg |
60kg |
0.49 |
|
PC-2 |
16 |
130 |
38 |
18 |
2500kg |
100kg |
0.92 |
|
PC-3 |
18 |
130 |
38 |
18 |
2500kg |
100kg |
1.00 |
|
PC-4A |
20 |
175 |
48 |
24 |
4000kg |
250kg |
1.65 |
|
PC-4B |
22 |
175 |
48 |
24 |
4000kg |
250kg |
2.30 |
|
PC-5A |
24 |
175 |
48 |
24 |
4000kg |
250kg |
2.31 |
|
PC-5B |
28 |
175 |
48 |
24 |
4000kg |
250kg |
2.72 |

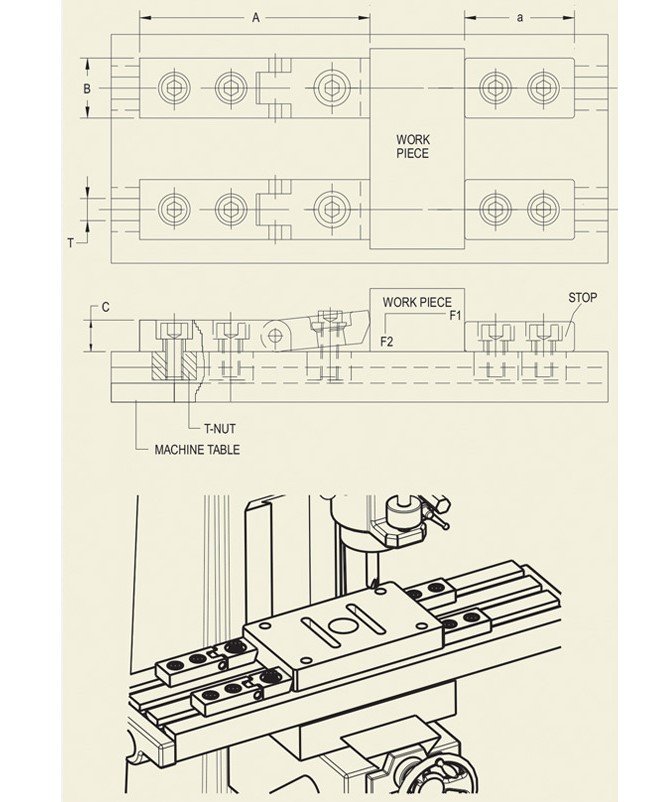

Low height pinch clamp is usefull for job clamping where complete top surface of the job is to be clamped only from side faces. when serrated from portion is pessed against the job by tightening the from bolt, it gives a down ward as well as forward clamping force body is made of hardened alloy steeel it is most usefull on milling, shaping, planning and jig boring machines supplied complete with hardened T-nuts & standard bolts
