Model |
H MIN AT Closed position |
H max AT open Position |
DIA AT Bottom D |
DIA AT top d |
DIA of screw d1 |
Type of top face |
Max load tons |
N.w kgs |
|
LJ-1A |
75 |
100 |
48 |
38 |
M-24 |
Flat |
5.0 |
0.76 |
|
LJ-1B |
100 |
150 |
48 |
38 |
M-24 |
Flat |
5.0 |
1.11 |
|
LJ-2 |
120 |
170 |
48 |
38 |
M-24 |
CONICAL |
5.0 |
1.13 |
|
LJ-3 |
105 |
155 |
48 |
38 |
M-24 |
“V” |
5.0 |
1.11 |

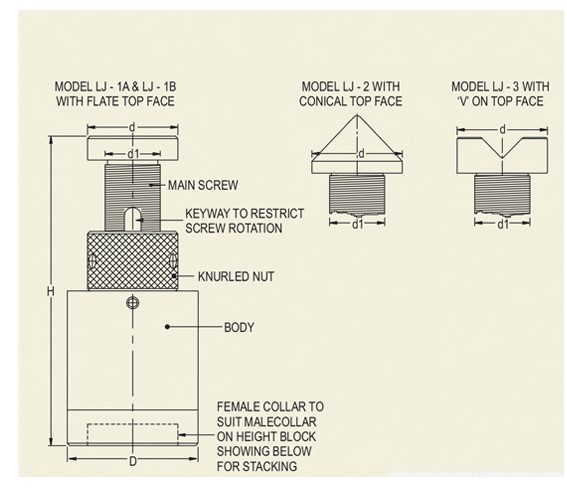

Leveling jack can be used as an adjustable support block for clamps and as stopper or leveling block in fixture or machines as well as for leveling surface plates or other heavy duty work piece its unique design does not allow the leveling screw to rotate while adjustment hence marke it suitable for fine level adjustment. also available in conical & v top for other appliction such as inspection
