Model |
Arm type |
A |
B max |
Mounting Base |
I |
J suitable for Dia |
H |
Holding capacity |
N.W.kgs |
||||||
|
C |
D |
E |
F |
M |
N |
ØG |
|||||||||
|
VHDT-19-U |
U |
19 |
35 |
32 |
26 |
24 |
15 |
4 |
5.5 |
4.5Ø |
12 |
M-6 |
90 |
70Kg |
0.11 |
|
VHDT-25-BR |
BR |
25 |
35 |
40 |
26 |
27 |
13 |
6.5 |
6.5 |
5.5Ø |
10 |
M-6 |
100 |
100Kg |
0.18 |
|
VHDT-25-BR |
BR |
25 |
50 |
40 |
26 |
27 |
13 |
6.5 |
6.5 |
5.5Ø |
10 |
M-6 |
100 |
100Kg |
0.19 |
|
VHDT-32-U |
U |
32 |
65 |
43 |
35 |
32 |
19 |
5.5 |
8 |
6.8Ø |
16 |
M-8 |
145 |
200Kg |
0.34 |
|
VHDT-32-BR |
BR |
32 |
90 |
43 |
35 |
32 |
19 |
10 |
8 |
6.8Ø |
16 |
M-8 |
145 |
200Kg |
0.35 |
|
VHDT-45-U |
U |
45 |
95 |
62 |
45 |
44 |
28 |
9 |
8.5 |
8.5Ø |
18 |
M-10 |
210 |
400Kg |
0.74 |
|
VHDT-45-BR |
BR |
45 |
120 |
62 |
45 |
44 |
28 |
9 |
8.5 |
8.5Ø |
18 |
M-10 |
210 |
400Kg |
0.75 |
|
VHDT-36-U |
U |
36 |
65 |
58 |
35 |
38 |
19 |
10 |
8 |
6.8Ø |
16 |
m-8 |
150 |
200Kg |
0.35 |
|
VHDT-36-BR |
BR |
60 |
120 |
70 |
55 |
53 |
36.5 |
8.5 |
9 |
8.5Ø |
20 |
M-10 |
270 |
500Kg |
1.35 |
|
VHDT-60-BR |
BR |
60 |
140 |
70 |
55 |
53 |
36.5 |
8.5 |
9 |
8.5Ø |
20 |
M-10 |
270 |
500Kg |
1.37 |
|
VHDT-80-U |
U |
80 |
135 |
95 |
75 |
70 |
50 |
12.5 |
12.5 |
10.5Ø |
32 |
M-16 |
340 |
700Kg |
2.28 |

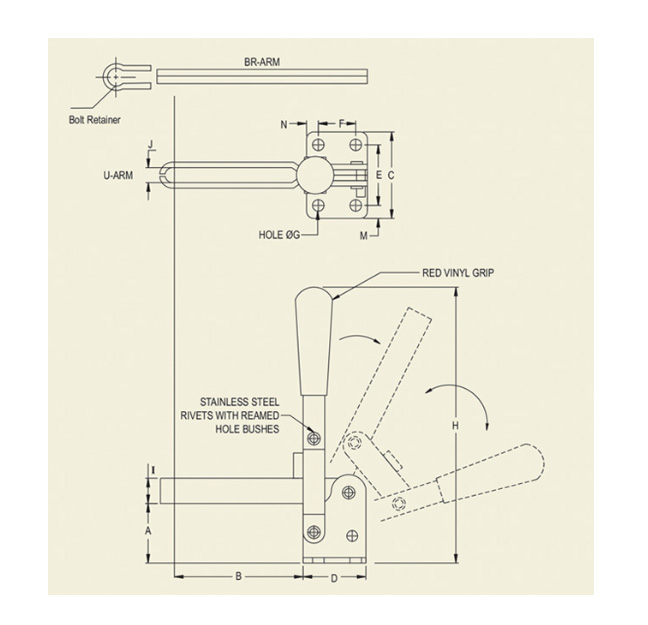

These toggle clamps have a flanged base with hole for mounting on the fixture plate. hadle remain in vertical position while clamping availbale in two type of clamping arms as shown below/
U-Arm:- this is the widely used type which permits to locate the clampingspindle anywhere along the length of the arm.
BR-Arm:- this type of arm has strip arm onto which the bolt retainer can be welded by user at any desire angle. bolt retainer is supplied loose with this model
