Toolfast Hold Down Toggle Clamp POHD

Toolfast Hold Down Toggle Clamp POHD

Price :
₹ 4830.00
GST inclusive
Model:
Quantity:
Add to Cart

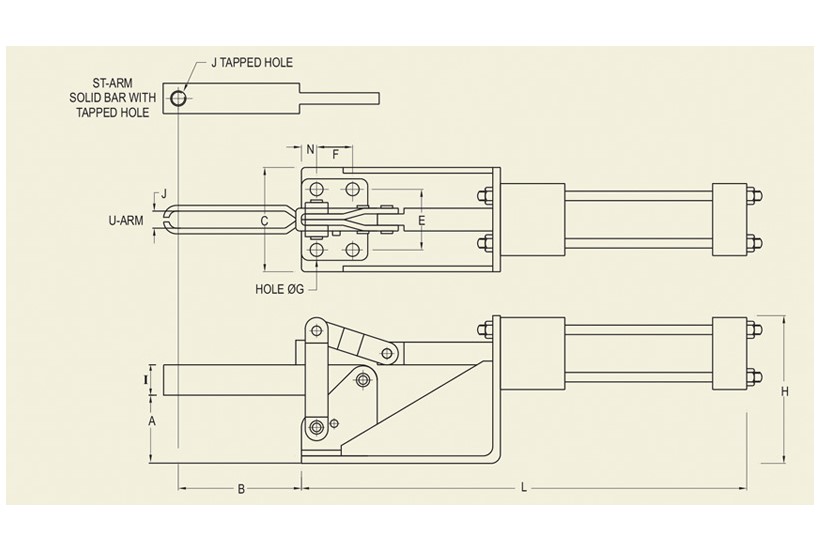

Model

Arm type

A

B max

Mounting base

I

J suitable for spindle DIA

L

H

Holding capacity

N.W.kg

C

E

F

N

ØG

POHD-35-U

U arm

36

65

60

32

19

8

6.8Ø

16

M-8

276

81

200Kg

1.5



  • U-arm:- this is the most widely used type which permits to locate the clamping spindle anywhere along the length of the arm.
  • Hold Down Toggle Clamp - Pneumatic Operation, Toggle Clamps with Pneumatic Operation have a Pneumatic cylinder mounted for operation only, the clamping force exerted comes from the toggle mechanism. They have high speed operation, Any number of clamps can be operated simultaneously with the help of a switch, Clamps can be operated in any desired sequence automatically by controlling the cycle electrically, clamps can be mounted at normally inaccessible position which are not in operator's reach for manual operation, Reed switch mounted pneumatic cylinders can be used if position sensoring is required.
