Toolfast Clamps & Clamping Elements

Toolfast Clamps & Clamping Elements

Price :
₹ 470.00
GST inclusive
Model:
Quantity:
Add to Cart

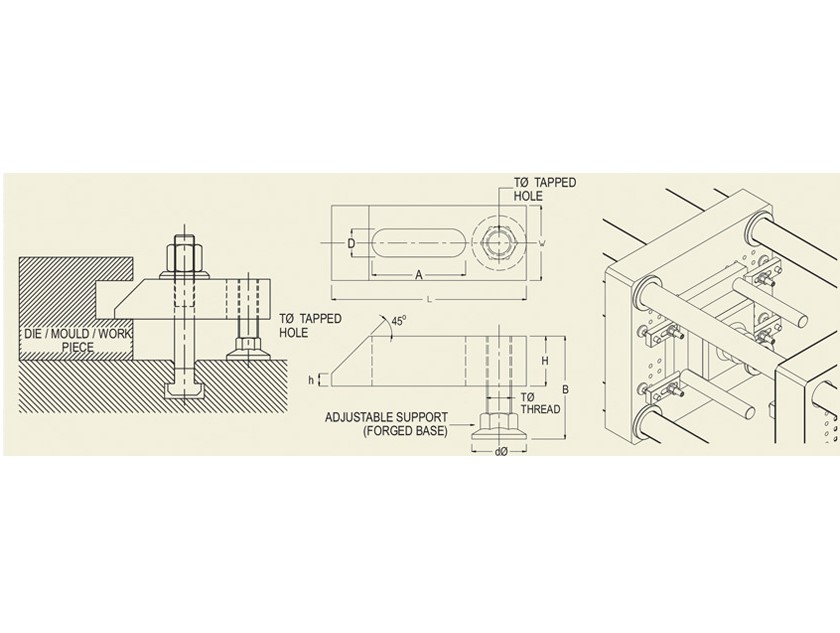

Model

D suitable

for bolt

L

A

W

H

h

TØ tapped

hole

dØ

B max

N.W kgs

TTUC-12

M12

110

55

38

18

6

M12

30

60

0.54

TTUC-16

M16

125

60

48

24

8

M16

35

70

0.98

TTUC-20

M20

160

80

62

30

10

M20

40

80

2.45

TTUC-24

M24

200

110

72

38

10

M24

50

65

3.67



  • Toofast tapped end clamp are strap having special threaded adjustable support at the rear which can be adjusted to required height most useful clamp for plastic injection moulding or pressure die casting machine where would die is clamped in vertical position and these clamps with screwed in adjustable support are convenient to the operator as other loose supports tend to fall down while setting hardened adjustable support with large diameter forged base gives rigid clamping support and ensures machine bed safety extra thick body of the clamp accommodates more number of threads for rigidity of screwed support
  • Supplied with adjustable threaded support only T-bolt or stub with nut, washer etc. to be ordered separately
