Model |
Height adjustment |
Plastic thickness |
Plate overall size |
Size of clamp rest area |
N.W kg |
|
|
Min |
Max |
|||||
|
TASP-250 |
10 |
50 |
2 |
50x35 |
25x35 |
0.66 |
|
TASP-2100 |
10 |
100 |
2 |
50x35 |
25x35 |
1.33 |
|
TASP-2150 |
10 |
150 |
2 |
50x35 |
25x35 |
1.99 |
|
TASP-L-250 |
10 |
50 |
2 |
60x50 |
35x50 |
1.15 |
|
TASP-L-2100 |
10 |
100 |
2 |
60x50 |
35x50 |
2.30 |
|
TASP-L-2150 |
10 |
150 |
2 |
60x50 |
35x50 |
3.41 |

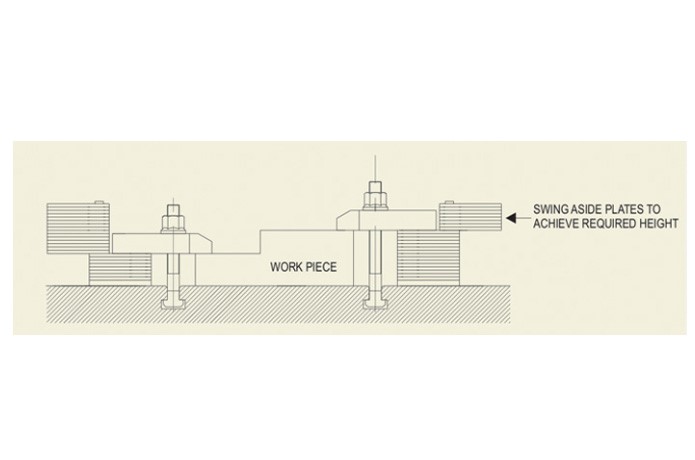

Adjustable support plates are used as adjustable support at the rear of the clamp. it compriser of a number of plates each 2mm thick hinged together. desired height is archieved very easily by swinging a side the required number of plates and using the remaining as support block different models of support plates can be stacked on each other to achieve extra height
