Price :

₹ 17346.00

GST inclusive

Model:

Quantity:

Add to Cart

Model	Cutting range	ØD	L	C	Ød2	Cutting of short fine threads upto		Shank dia	Expansion self opening
Model	Cutting range	ØD	L	C	Ød2	dia	Length	Shank dia	Expansion self opening
SDH1	M2-M8 (3/32”-5/16”)	48	58	10	12	11	12	20mm or 5/8”	3.5
SDH2	M4-M14 (3/16”-9/16”)	65	78	17	24	16	24	30mm or 1”	4.5
SDH3	M6-M18 (1/14”-3/4”)	88	99.5	24	35	22	35	40mm or 1.1/2”	5
SDH4	M10-M24 (3/8”-1”)	102	109	34	40	30	40	40mm or 1.1/2”	5
SDH5	M12-M30 (1/2”-1.1/4”)	210	126	36	45	35	45	60mm or 2.1/8”	5.5

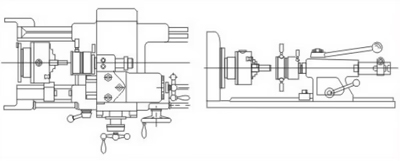

Mounted on center lathes, capstans, turrets or like machine tools taco' self opening die-head are used for cutting threads and are most suitable for heavy duty work & mass production. die heads open automatically when the selected thread length is reached eliminating the necessity of the direction or working spindle.
These die-hads are also recommended for large run of stay bolts, adjusting screw etc.
Normally taco, die-heads are supplied with a strangth shank
The shank is held id position by three screw and there before one fro of flanged shank, such as morse taper shank or other type of flanged shank can be fitted to suit a partcular machine.
Most economical thread cutting tool of simple design
Achieve mass production with uniform high accuracy
Most suitable for cutting right & left thred of any from and pitch on any material
Easy to operate- can be handled by semi-skilled labor reversal of the direction working spindle not necessary
Fully encloased type prevent ingrees of chips and dirt
All comporate very simple arrangement fixing and removal of chases
Rugged construction-long service life.

Taco Self Opening Die Head
