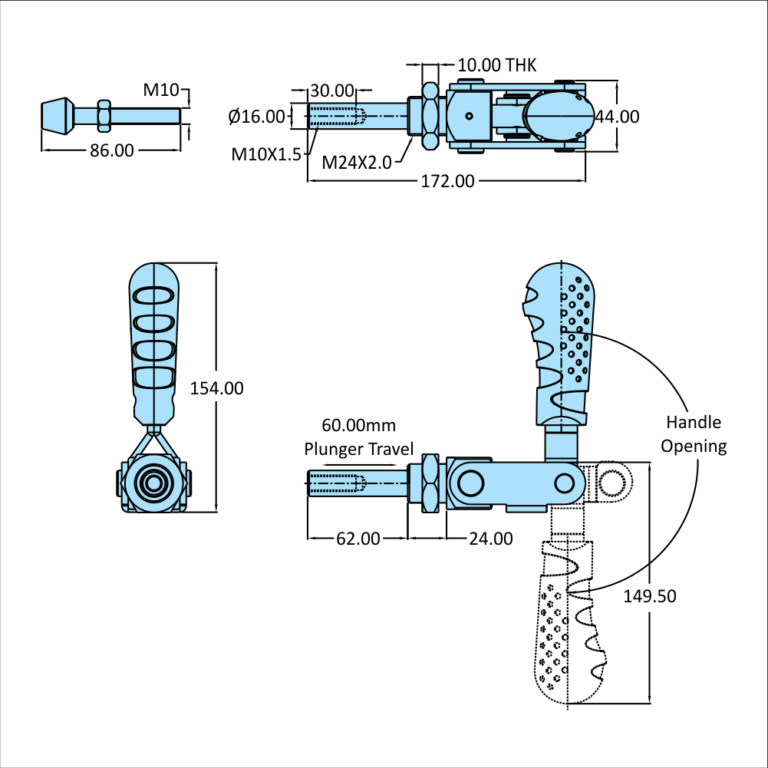

Model |
HTC-600-FM |
|
Type |
HTC-series clamps front mounting |
|
Base type |
Front mounting |
|
Material |
Steel |
|
Finish |
Zinc plated |
|
Plunger travel |
60mm |
|
Handle opening |
180degree |
|
Holding capacity X1 |
3.40KN |
|
Length |
172.00mm |
|
Width |
44.00mm |
|
Height |
154.00mm |
|
Weight |
0.910kg |
The Toggle Clamps Consist of a handle to operate, a Clamping Arm to Reach the work piece, linkages for multiplying the applied force, and a base for mounting at the workplace on it’s base. The handle is operated which thereby moves the clamping arm to hold the work piece. A required clamping force is achieved and exerted on the work piece. Under this action the Toggle Clamp Holds the work piece firmly and positively.
