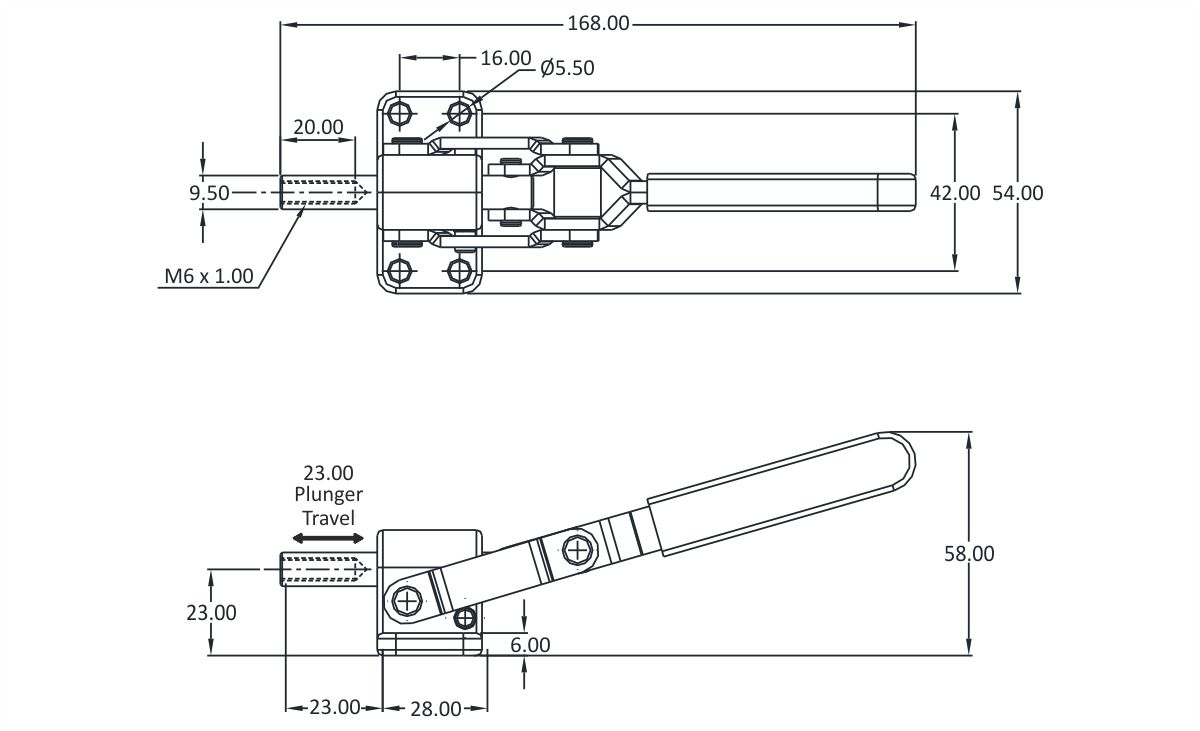

Model |
HTC-5065 |
|
Type |
HTC-series medium/heavy duty clamps-flanged base |
|
Base type |
Flanged base |
|
Material |
Steel |
|
Finish |
Zinc plated/back powder coated |
|
Plunger travel |
70mm |
|
Supplied width |
131degree |
|
Holding capacity X1 |
44.10KN |
|
Length |
384.00mm |
|
Width |
100.00mm |
|
Height |
122.00mm |
|
Weight |
3.320Kg |
The Toggle Clamps Consist of a handle to operate, a Clamping Arm to Reach the work piece, linkages for multiplying the applied force, and a base for mounting at the workplace on it’s base. The handle is operated which thereby moves the clamping arm to hold the work piece. A required clamping force is achieved and exerted on the work piece. Under this action the Toggle Clamp Holds the work piece firmly and positively.
