Mitutoyo Spline Micrometer 111 Series

Mitutoyo Spline Micrometer 111 Series

Price :
₹ 10155.00
GST inclusive
Code:
Quantity:
Add to Cart

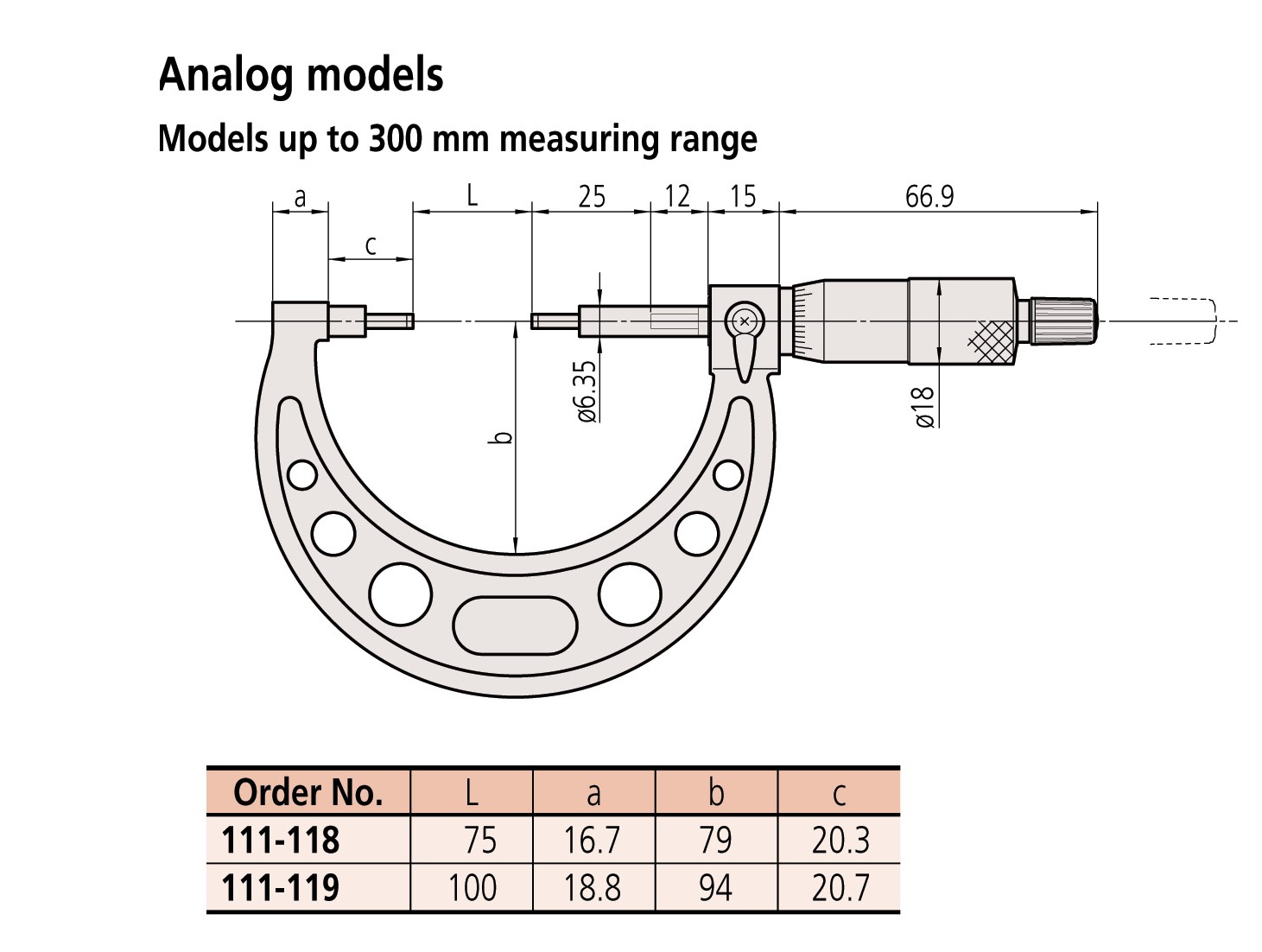

Order no

Range

Graduation

Maximum permissible

error JMPE

Flatness

Parallelism

Remark

111-118

75-100mm

0.01mm

±4µm

0.3µm

3µm

Type A



  • The anvil and spindle are of small diameter for measuring splined shafts, slots and keyways
  • Measuring faces: carbide
  • Equipped with ratchet stop for constant measuring force.
  • Available in inch and micro models
  • Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force.
  • Ratchet-stop mechanism provides uniform pressure for precise, repetable measurement.
  • Carbide facing on the spindle and anvil resists wear to keep surface flatter with longer accuracy
  • From has a baked enanel finish to resist carrosion.
  • Scale is laser etched on thimble for easier relading
  • Included a standard bar except for 0-1" or 0-25mm models.
