Code	Range	Resolution	Accuracy	Repeatability	Max.response speed	Mass
570-312	0-12”	0.005”/0.01mm	±0.015”	0.01mm	Unlimited	4.6kg
570-313	0-18”	0.005”/0.01mm	±0.015”	0.01mm	Unlimited	5.9kg

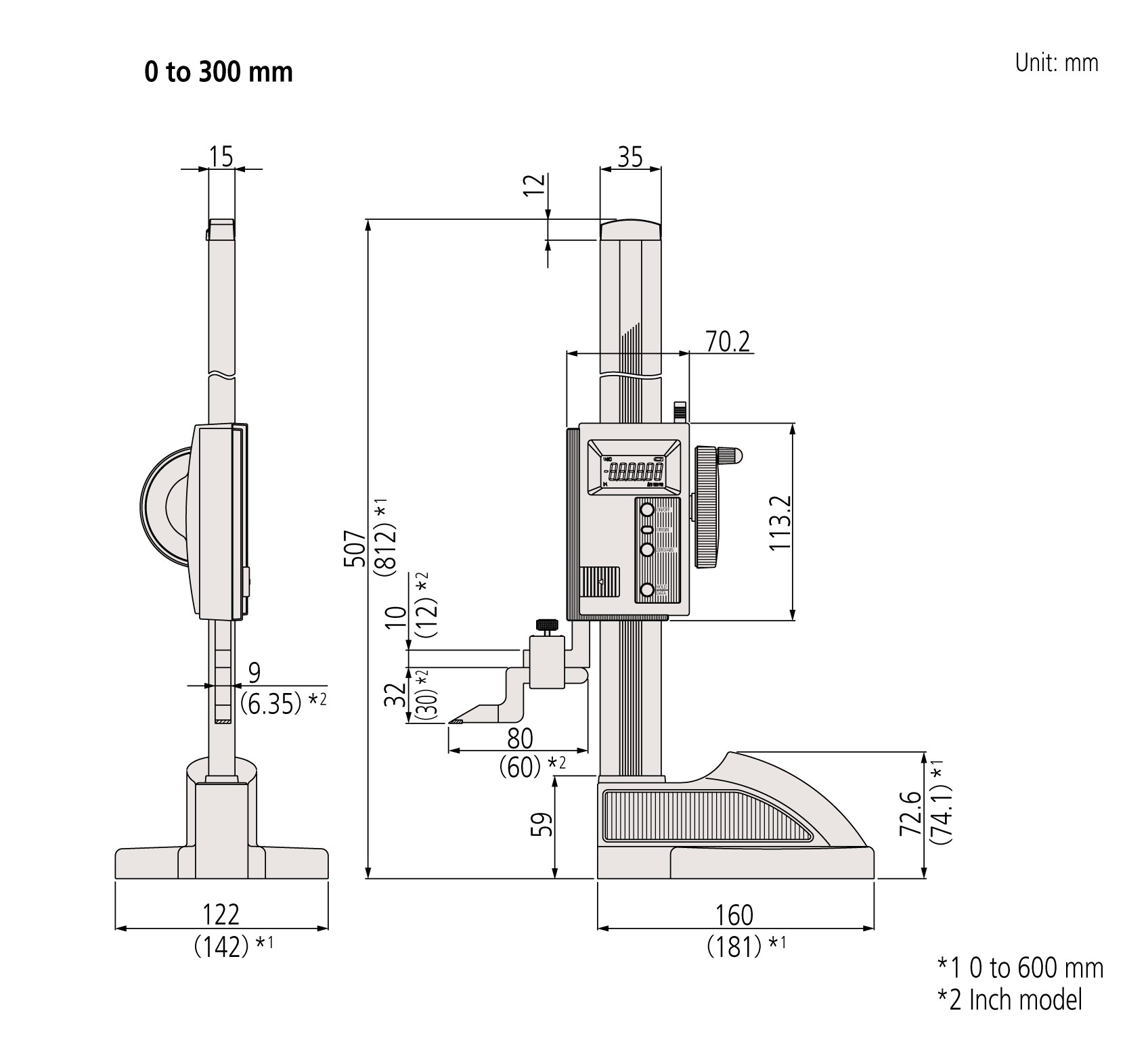

570-302	0-300mm	0.01mm	±0.03mm	0.01mm	Unlimited	4.6kg

Allows smooth elevation by the slider adjustment wheel, which is the same as the well-established double-column structure height gage.
Large slider-clamp lever ensures positive and accurate clamping action. • High durability and high accuracy are ensured by an improved column design (35×15 mm).
Character height of the LCD display is 10 mm.
Ergonomic and stylish base fits comfortably in the hand.
Due to the built-in ABSOLUTE scale function, origin setting is not required each time power is turned ON.
Allows integration into statistical process control and measurement systems for models with measurement data output connector. (Refer to page A-3.)
Battery: SR44 (1 pc), 938882. For initial operational checks (standard accessory)
Battery life is 20,000 hours under normal use.
For precision Black Granite Surface Plates, refer to page E-49.

Mitutoyo Digimatic Height Gage Series 570
