Order.no	Graduation	Range (range/rev)	Mximum permissible error(MPE)(4M)						Dial reading	Measuring faces(N)
W/Lug			Indicator error				Hystersis	Repeatability
			1/10 Rev	1/2 Rev	1 Rev	Measuring range
2046A	0.01mm	10(1)	5	9	10	13	3	3	±0-100	1.4N or Less

A mechanism holds the pointer and the spindle at the position of maximum depression and hence displays the maximum value.

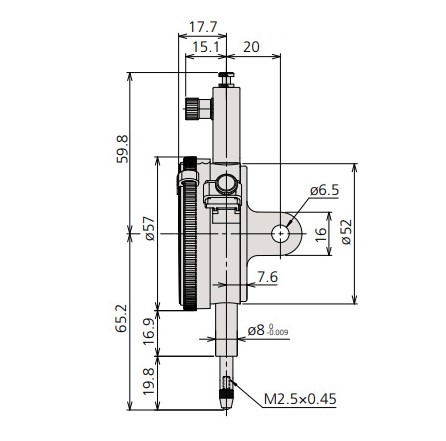

Standard 0.01mm graduation dial gage having a bezel with an outside diameter of 57mm. all type come with limit makers and a bezel clamps standard.
The bezel clamp of lifting lever (optional) can be attached to either the right or left side. these parts can be easily installed and removed without tools.
Secure adhesion between the bezel and crystal as well as the use of an o-ring prevent water or oil pentration.
The spindle is made of high-strength quench hardened stainless steel suitable for heavy duty use.
A carbide contact point is used
The grand gear is made of stainless steel with high resistance to wear and deformation.

Mitutoyo Dial Indicator 2046A
