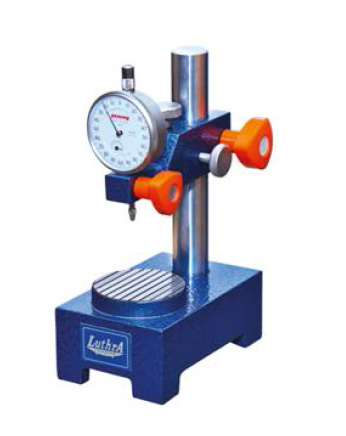

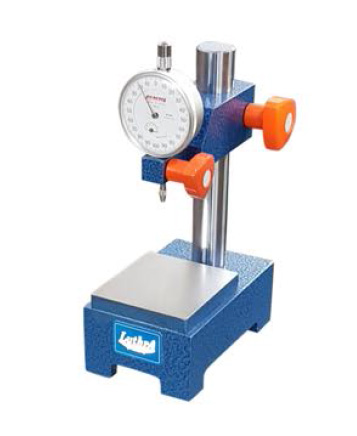

Luthra Cast Iron Comparator Stand

Luthra Cast Iron Comparator Stand

Price :
₹ 5310.00
GST inclusive
Model:
Quantity:
Add to Cart

Model

Anvil size

Anvil type

Flatness microns µm

Gauging bracket

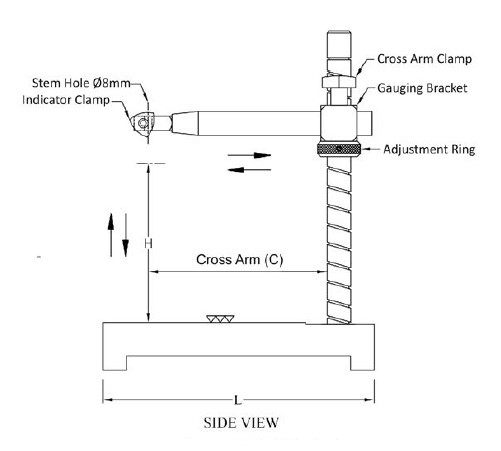

Measuring Height (H) mm

Cross arm (C) mm

Column Dia Ø mm

Net weight kgs

LCS-2

Dia 60

Hardened sterrated

3.00

Fine adjustment

100

55

25

4.00

LCS-3

70x70

Hardened

3.00

Centre

100

55

25

3.50

LCS-4

70x70

Hardened sterrated

3.00

Fine adjustment

100

55

25

4.00



  • Luthra cast iron comparator stands are made from selected quality close grain graded casting , which is further processed to first accuracy, our vast experience makes our product most versatile and easy to use.
  • Cast iron anvil is FG 220 grade , having hardness within 180-220BNH
  • Cast iron anvil is precision ground
  • Hardened anvil is made of high quality alloy steel, stablized and precision ground.
  • Alloy steel anvil hardness within 55-58HRC
  • Heavy duty vertical column and gauging bracket.
  • Accepts all electronic and standard gages
  • Calibration certificate is provided with each comparator stand
