Insize Roughness Tester (Separable Type) ISR-C300

Code

ISR-C300

Parameters

Ra, Rz, Rq, Rv, Rp, Rs, R3z, R3y, Rt, Rc, Rz (JIS),

Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry, Rmax

Range

X axis

17.5mm

Z axis

320µm (-160µm~160µm)

Accuracy

±10%

Resolution (Ra)

0.001µm

Probe

Type

Inductive

Stylus radius/ angle

5µm/90°

Stylus material

diamond

Measuring force

4mN

Measuring unit

µm/µin

Cut off

0.25/0.8/2.5mm

Number of cut-offs

1~5

Traverse speed

0.135mm/s, 0.5mm/s, 1mm/s

memory

100 measurement results

Power

Built-in rechargeable battery

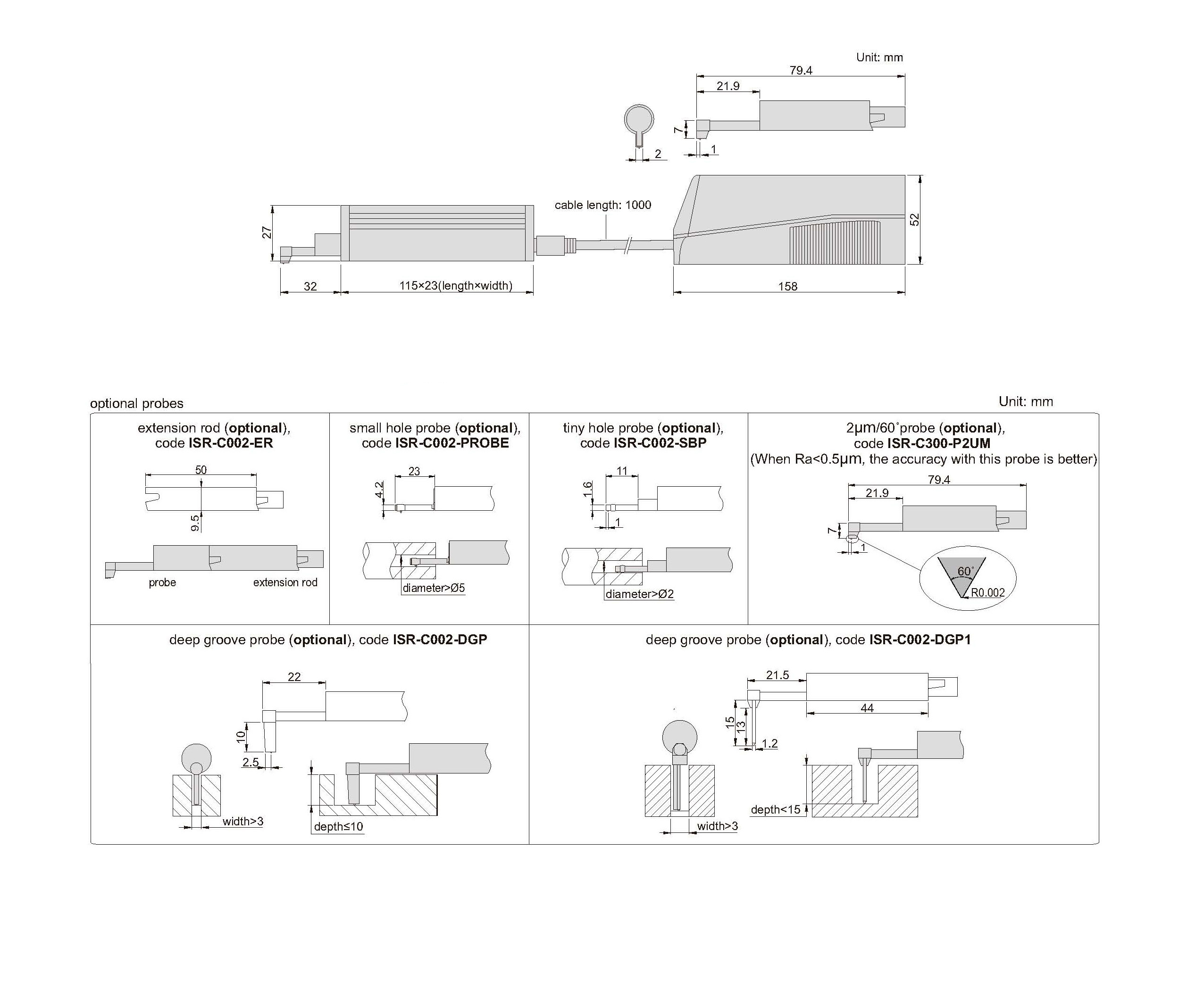

Dimension (LxWxH)

158x64x52mm

Weight

400g
