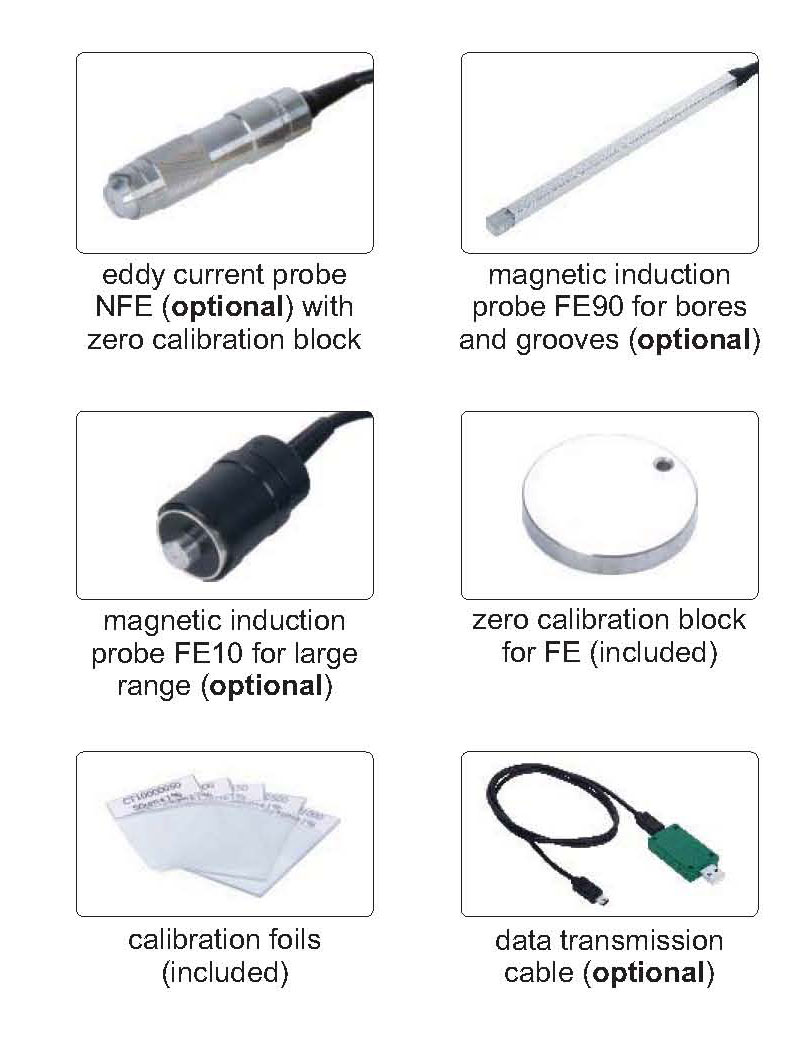

Probe type |
FE (included) Magnetic induction probe |
NFE (optional) Eddy current probe |
FE90(optional) Magnetic induction For bores and grooves |
FE10(optional)
|
|||
|
Measuring range |
0~1250µm |
0~1250µm |
0~1250µm |
500~1000µm |
|||
|
Accuracy |
±(3%L+1)µm (range≤1250µm) ±(3%L+10)µm (range>1250µm) L is measuring thickness in µm |
|
|||||
|
Resolution |
0.1µm(range<100µm) |
|
|||||
|
1µm (range≥100µm) |
|
||||||
|
Measuring mode |
Continuous and single |
|
|||||
|
Minimum substrate thickness |
0.5mm |
0.3mm |
0.5mm |
2mm |
|
||
|
Minimum measuring area |
Ø7mm |
Ø5mm |
Ø7mm |
Ø40mm |
|
||
|
Minimum curvature radius Of convex workpiece |
1.5mm |
3mm |
- |
10mm |
|
||
|
Memory |
500 |
|
|||||
|
Output |
USB |
|
|||||
|
Power supply |
2x1.5V AA batteries |
|
|||||
|
Dimension |
128x68x32mm |
|
|||||
|
Weight |
340g |
|
|||||
