IMI Quick Change Tapping Chuck SK50

IMI Quick Change Tapping Chuck SK50

Price :
₹ 10428.00
GST inclusive
Model:
Quantity:
Add to Cart

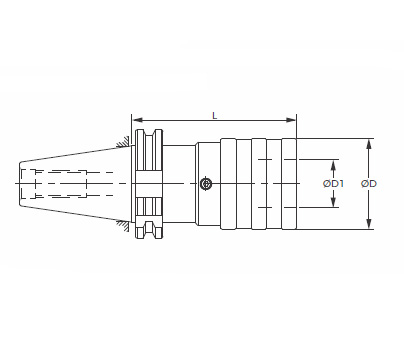

Model

For taps

Suitable adaptors

Length compensation

ØD

ØD1

Ordering number & L taperDIN69871



Comp

Exp.



SK50



QCLK1

M3-M12

1

7.5

7.5

36

19

20,231,040,L-74



QCLK2

M8-M20

2

12.5

12.5

53

11

20,232,040,L-84



QCLK3

M14-M33

3

20

20

78

48

20,233,040,L-139



QCLK4

M22-M48

4

22.5

22.5

96

60

20,234,040,L-153





  • For use on cnc machining center, cnc turning center, center lathe, drilling machine, length compensation action on compression and expansion to compensate for difference between spindle feed and pitch of thread. the chuck is equipped with pressure point mechanism to increase the cuttiing pressure to ensure positive start when tapping cycle commences.
