IMI Quick Change Tapping Chuck SK45

IMI Quick Change Tapping Chuck SK45

Price :
₹ 9005.00
GST inclusive
Model:
Quantity:
Add to Cart

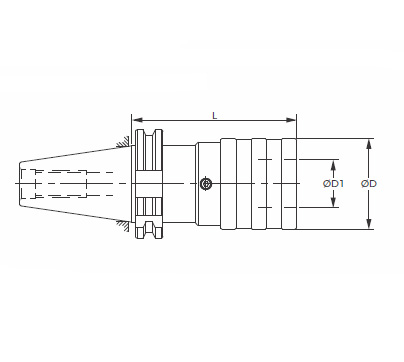

Model

For taps

Suitable adaptors

Length compensation

ØD

ØD1

Ordering number & L taperDIN69871



Comp

Exp.



SK45



QCLK1

M3-M12

1

7.5

7.5

36

19

20,231,030,L-60



QCLK2

M8-M20

2

12.5

12.5

53

11

20,232,030,L-184



QCLK3

M14-M33

3

20

20

78

48

20,233,030,L-146



QCLK4

M22-M48

4

22.5

22.5

96

60

20,234,030,L-161





  • For use on cnc machining center, cnc turning center, center lathe drilling machine, length compensation acting on compression and expansion to compensate for differences between spindle feed and pitch of thread. the chuck is equipped with pressure point mechanism to increase the cutting pressure to ensure position start when tapping cycle commences.
