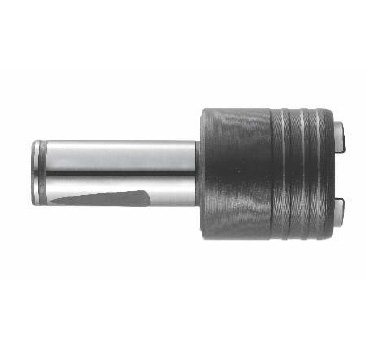

IMI Quick Change Tapping Chuck QCLK/ST Ø30

IMI Quick Change Tapping Chuck QCLK/ST Ø30

Price :
₹ 5110.00
GST inclusive
Model:
Quantity:
Add to Cart

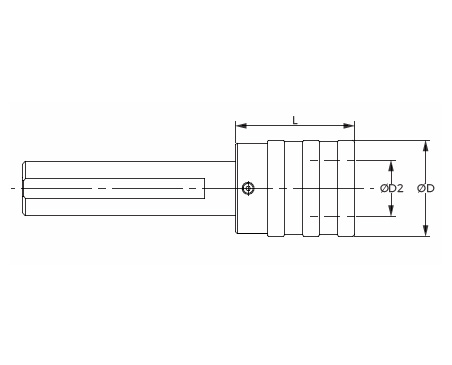

Model

For taps

Suitable adaptors

Length compensation

ØD

ØD2

Ordering number & L Straight shank Ø30

Comp.

Exp.

QCLK1/st

M3-M12

1

7.5

7.5

36

19

20,321,130, L-40

QCLK2/st

M8-M20

2

12.5

12.5

53

31

20, 322,130, L-64

QCLK3/st

M14-M33

3

20

20

78

48

20,323,130, L-97



  • For use on CNC machining center, CNC turning center, center lathe, drilling machine, length compensation acting on compression and exparsion to compensate for difference between spindle feed and pitch of thread. the chuck is equipped with pressure point mechanism to increase the cutting pressure to ensure positive start when tapping cycle emmences.
