IMI Quick Change Tapping Chuck QCLK/st

IMI Quick Change Tapping Chuck QCLK/st

Price :
₹ 4740.00
GST inclusive
Model:
Quantity:
Add to Cart

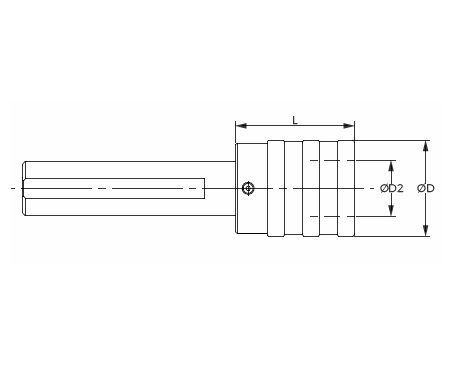

Model

For taps

Suitable adaptors

Length compensation

ØD

ØD2

Ordering number & L Straight shank Ø25

Comp.

Exp.

QCLK1/st

M3-M12

1

7.5

7.5

36

19

20,321,100 L-40

QCLK2/st

M8-M20

2

12.5

12.5

53

31

20,322,100, L-64



  • For use on CNC machining center, CNC turning center, center lathe, drilling machine, length compensation acting on compression and exparsion to compensate for difference between spindle feed and pitch of thread. the chuck is equipped with pressure point mechanism to increase the cutting pressure to ensure positive start when tapping cycle emmences.
