IMI Quick Change Tapping Chuck QCLK/MT4

IMI Quick Change Tapping Chuck QCLK/MT4

Price :
₹ 8085.00
GST inclusive
Model:
Quantity:
Add to Cart

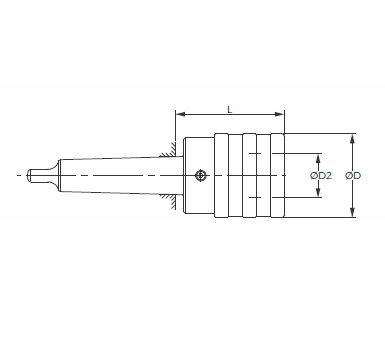

Model

For Taps

Suitable adaptor

Length compensation

ØD

ØD2

Ordering number & L mores taper DIN 228/IS1715  MT2

Comp.

Exp.

QCLK2

M8-M20

2

12.5

12.5

53

31

20,102,030,L-72

QCLK3

M14-M33

3

20

20

78

48

20,103,040,L-105



  • For use on CNC machining center, CNC turning center, center lathe, drilling machine, length compensation acting on compression and exparsion to compensate for difference between spindle feed and pitch of thread. the chuck is equipped with pressure point mechanism to increase the cutting pressure to ensure positive start when tapping cycle emmences.
