IMI Quick Change Tapping Chuck QCLK/BT50

IMI Quick Change Tapping Chuck QCLK/BT50

Price :
10430.00
GST inclusive
Model:
Quantity:

Model

For taps

Suitable adaptors size

Length compensation

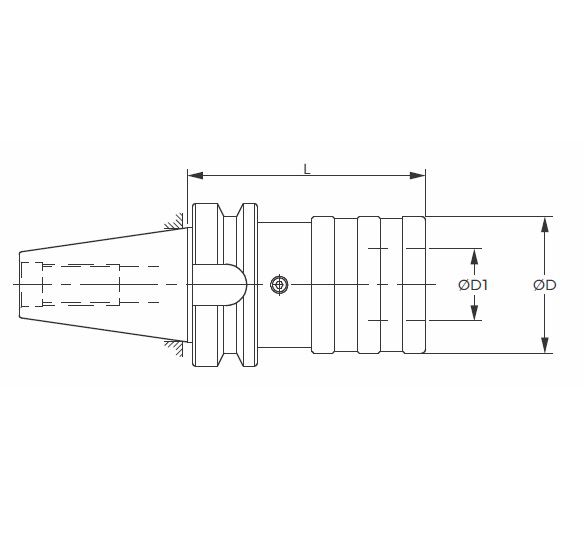

ØD

ØD1

Ordering number & L Taper Mas 403, BT45

Comp.

Exp.

QCLK1

M3-M12

1

7.5

7.5

36

19

20,211,040,L-78.5

QCLK2

M8-M20

2

12.5

12.5

53

31

20,212,040,L-102.5

QCLK3

M14-M33

3

20

20

78

48

20,213,040, L-142

QCLK4

M22-M48

4

22.5

22.5

96

60

20,214,040, L-165.5



  • For use on CNC machining center. CNC turning center. center lathe, driiling machine, length, compensation acting on compression and and exparsion to compensate for difference between spindle feed and pitch of thread. the chuck is equipped with pressure point mechanism to increase the cutting pressure to ensure positive start when tapping cycle commences.
