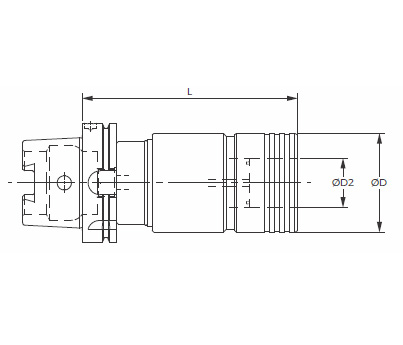

IMI Quick Change Tapping Chuck QCLC-IK/HSK50

IMI Quick Change Tapping Chuck QCLC-IK/HSK50

Price :
₹ 22305.00
GST inclusive
Model:
Quantity:
Add to Cart

Model

For Taps

Suitable Adaptor size

Length Compensation

ØD

ØD2

Ordering number& L Taper DIN 69893 A HSK-50

Comp.

Exp.

QCLC-115-IK

M3-M12

1

7.50

7.50

39

19

C26,161,030,L-103.00

QCLC-220-IK

M8-M20

2

10.00

10.00

60

31

C26,162,030,L-140.00



  • For use on CNC machining center, CNC turning center, center lathe. drilling machine. length compensation acting on compression and expansion to compensate for differences between spindle feed and pitch of thread. the chuck is equipped with pressure point mehanism to increase the cutting pressure to ensure positive start when tapping cycle commences.
