IMI Quick Change Tapping Chuck QCF, MT4

IMI Quick Change Tapping Chuck QCF, MT4

Price :
5310.00
GST inclusive
Model:
Quantity:

Model

For taps

Max Ø

Float

Suitable adaptors size

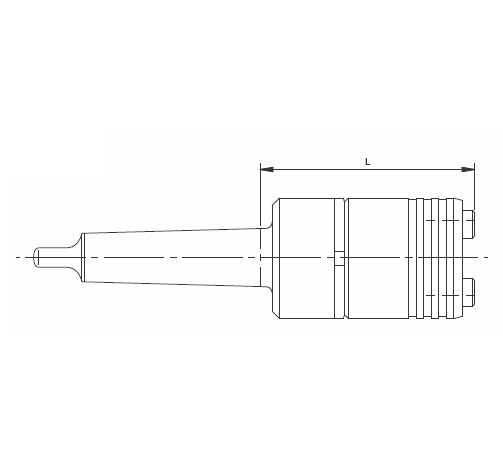

Ordering number&L morse taper DIN228B/IS1715, MT4

QCF2

M8-M20

50

1.00

2

14,102,040,L-92.00

QCF3

M14-M33

72

1.50

3

14,103,040,L-132.00

QCF4

M22-M48

95

2.00

4

14,104,040,L-161.00



  • For use on CNC machining center, CNC turning center, center lathe. drilling machine. length compensation acting on compression and expansion to compensate for differences between spindle feed and pitch of thread. the chuck is equipped with pressure point mehanism to increase the cutting pressure to ensure positive start when tapping cycle commences.
