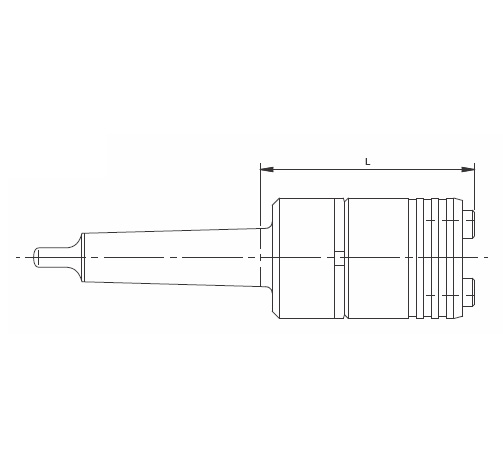

IMI Quick Change Tapping Chuck QCF, MT3

IMI Quick Change Tapping Chuck QCF, MT3

Price :
4320.00
GST inclusive
Model:
Quantity:

Model

For taps

Max Ø

Float

Suitable adaptors size

Ordering number&L morse taper DIN228B/IS1715, MT3

QCF1

M3-M12

32

0.50

1

14,101,030,L-73.50

QCF2

M8-M20

50

1.00

2

14,102,030,L-91.00

QCF3

M14-M33

72

1.50

3

14,103,030,L-131.00

QCF40

M6-M18

40

0.75

40

14,107,030,L-84.00



  • For use on CNC machining center, CNC turning center, center lathe. drilling machine. length compensation acting on compression and expansion to compensate for differences between spindle feed and pitch of thread. the chuck is equipped with pressure point mehanism to increase the cutting pressure to ensure positive start when tapping cycle commences.
