IMI Quick Change Tapping Chuck QCF, MT2

IMI Quick Change Tapping Chuck QCF, MT2

Price :
3720.00
GST inclusive
Model:
Quantity:

Model

For taps

Max Ø

Float

Suitable adaptors size

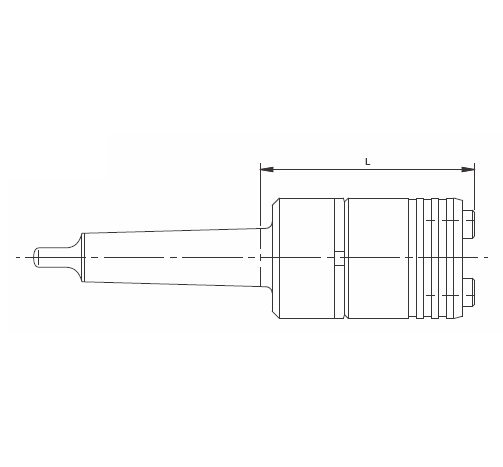

Ordering number&L morse taper DIN228B/IS1715, MT2

QCF0

M1-M10

23

0.25

0

14,100,020,L-62.00

QCF1

M3-M12

32

0.50

1

14,101,020,L-73.50

QCF2

M8-M20

50

1.00

2

14,102,020,L-91.00

QCF40

M6-M18

40

0.75

40

14,107,020,L-84.00



  • For use on CNC machining center, CNC turning center, center lathe. drilling machine. length compensation acting on compression and expansion to compensate for differences between spindle feed and pitch of thread. the chuck is equipped with pressure point mehanism to increase the cutting pressure to ensure positive start when tapping cycle commences.
