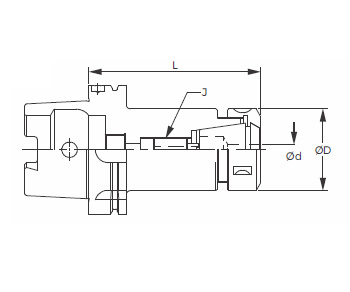

IMI Er Collet Holder Model CHE/HSK

Model

Suitable ER Collet Size

Ød Range

J

ØD

L

HSK-63 CHE16-90

ER-16

3-10

M10x1.50

28

90

HSK-63 CHE25-90

ER-25

3-16

M16x2

42

90

HSK-63 CHE32-100

ER-32

3-20

M18x1.50

50

100

HSK-63 CHE40-120

ER-40

4-26

M22x1.50

63

120

HSK-100 CHE32-100

ER-32

3-20

M18x1.50

50

100

HSK-100 CHE40-120

ER-40

4-26

M22x1.50

63

120

HSK-100 CHE50-130

ER-50

10-34

M22x1.50

78

130
