IMI BT Shrink Fit Holders Standard DIN Length Model-SFH BT40

IMI BT Shrink Fit Holders Standard DIN Length Model-SFH BT40

Price :
₹ 8995.00
GST inclusive
Model:
Quantity:
Add to Cart

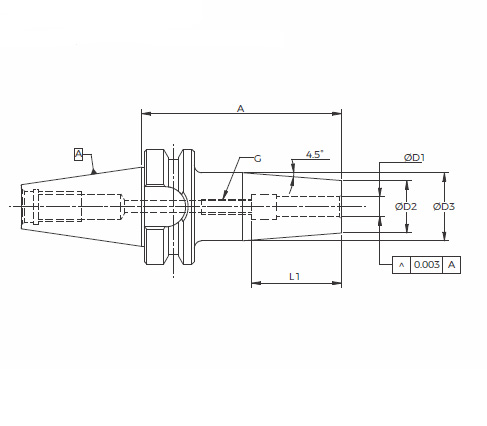

Model

D1

A

D2

D3

L1

G

Coolant style

BT40-SF3-90

3

90

15

20

20

-

AD Thru

BT40-SF4-90

4

90

15

20

20

-

AD Thru

BT40-SF5-90

5

90

15

20

20

-

AD Thru

BT40-SF6-90

6

90

21

27

36

M5

AD Thru

BT40-SF8-90

8

90

21

27

36

M6x1

AD Thru

BT40-SF10-90

10

90

24

32

42

M8x1

AD Thru

BT40-SF12-90

12

90

24

32

47

M10x1

AD Thru

BT40-SF16-90

16

90

27

34

50

M12x1

AD Thru

BT40-SF20-90

20

90

33

42

52

M16x1

AD Thru

BT40-SF25-100

25

100

44

53

58

M16x1

AD Thru

BT40-SF32-100

32

100

44

53

58

M16x1

AD Thru



  • Assembly creates single mono-block tool system that is more accurate in TIR cylindrically then and other tool clamping system known.
  • Clamping forces are greater than mechanical system using collets hydraulic pressure, on even" press-fit interferecess technology.
  • Lowest TIR runout of any tool clamping system and allows 360degree surfaces contat between tool shank and tool holder bore.
  • Excellent tool clamping system for high-speed machining du eto the excellent sysmetrical design of the holder and no mechanical parts to change intial balanced weight.
  • Slim and short tool holder profiles are achievable since there is no need for moveable part to clamp the cutting shank.
  • Improvement in tool life cutting ability and surface finish mean less wear and tear on the tool holders (taper fretting) and machine spindle bearing. this is due to the tool holders greater clamping power compared to other tool holding methods and superior overall rigidity. additionally. these holders have a maximum T.I.R of 0.0001" (25.4um) and are balanced to 25.000RPM.
