Model	PFB
Center height	80~81mm
Clamping dia. Range of v-block	Ø4~30mm
Travel of v-block	30mm
Indexer tooth q’ty & accuracy	24,15°±10”
Clamping accuracy (50mm)	0.005mm
Through hole dia	Ø30mm
Capable wheel size of dressing	Ø200mm
Convex	R48mm
Concave	R100mm

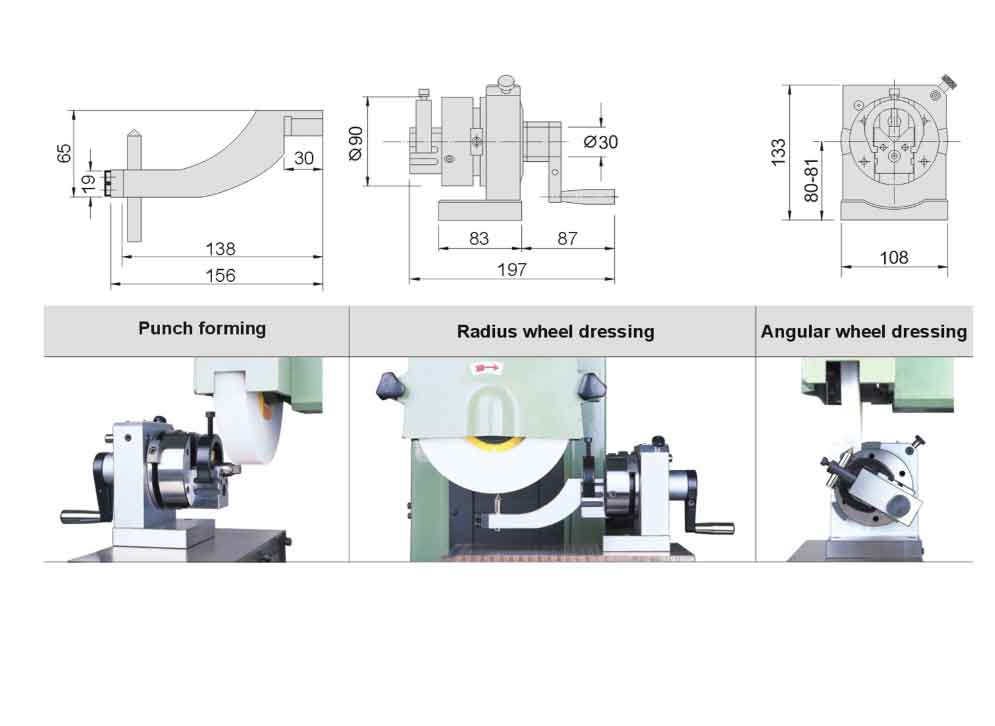

PFB punch former have not just the same features of PFA but also with through hole design especially for longer pin extended punches grinding.
Adopting ARC attachment for dressing wheels various shapes.
The PFB1 attachment can also be applied to perform angular wheel dressing.
Optional accessory PFB1 to achive angular wheel dressing
Standard accessory crank for dressing grinding wheel into various cross section of flat curved shoes.

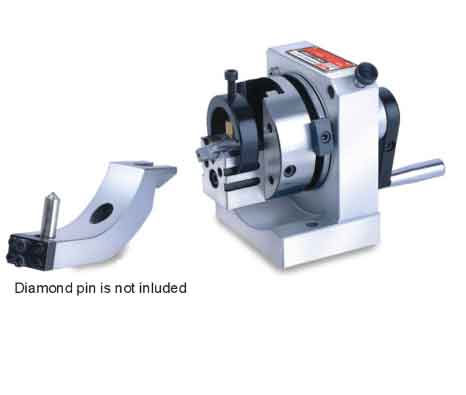

Gin Punch Former PFB
