Dynemech Wedge Mounts Series DB

Dynemech Wedge Mounts Series DB

Price :
₹ 3823.00
GST inclusive
Model:
Quantity:
Add to Cart

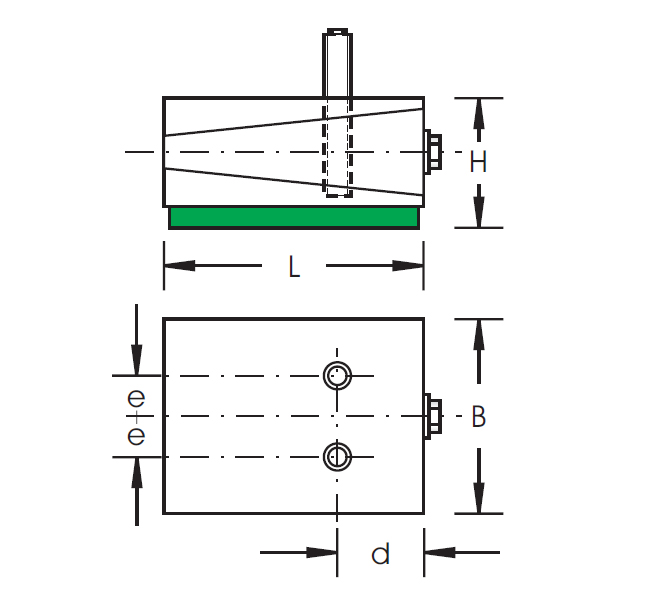

Model

Load (kg/pc)

Length (L)

Weight B (mm)

Height (H) at mean position (mm)

d (mm)

e (mm)

Bolt size (mm)

Adj. range (mm)

DB-2i

2900

150

150

75

60

23

M18

10

DB-3i

5200

200

200

75

75

27

M20

12

DB4-i

6500

200

250

95

95

27

M20

18



  • Application:- power presses, stamping machines, shearing machines punching machines, for machines with high vertical impact.
  • Dynemech wedge mounts series DB are designed for industrial machine tool that require precision levelling, vibration reduction and/or need to be firmly mounted with the isolator.
  • Dynemech wedge mounts series DB is designed for machines which require precision levelling along with vibration reduction and are desired to be firmly mounted with the isolator or machines with high axial thrust and do not require any anchoring in the floor.
