Price :

₹ 3292.00

GST inclusive

Model:

Quantity:

Add to Cart

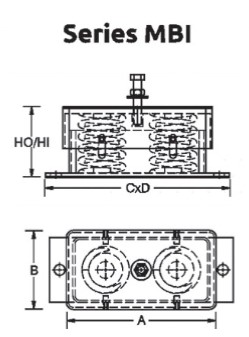

Model	Load (kg)	H o	H1	Bolt size	Top plate AxB (mm)	Bottom Plate LxD (mm)	CC	Natural frequency (H₂)
MBI-L4	10-1000	86	105	M12	221x117	271x096	241	3.5-11

Dynemech spring Isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machine and impact generating machine viscous damping is an important feature of an isolation system. in most cases viscous damping is required to limit excessive movement which could occur as a machine operates at speed near to air coinciding with the resonant frequencies of the system. generally this problem arises during slow run up and run down of rotating machine and during impact at each stroke in presses and hammers.

Dynemech Spring Isolators Series MBI
