Price :

₹ 3079.00

GST inclusive

Model:

Quantity:

Add to Cart

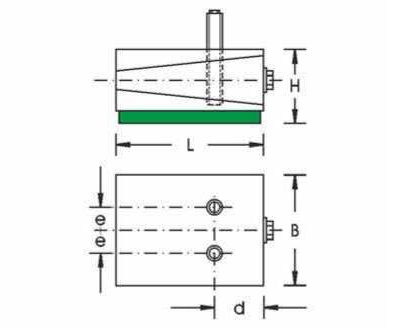

Model	Load (kg/pc)	Length (L) mm	Width (B) mm	Height (H) at mean position (mm)	d (mm)	e (mm)	Bolr size	Adj. range (mm)
DBP1-M	1400	115	115	10/150	50	24	M16	8

Mount are designed for industrial machines that require the machines to be placed at a height of 100mm/150mm for proper cleaning and reparing under the machine as per IMTMA guidelines. series DBP mount are designed for machines which require precision leveling along with vibration reduction and are desired to be firmly mounted with the isolator or machines with high axil thrust and do require any anchoring to the floor.
These mounts provide 2holes on the top plate of the wedge the bolt which is supplied as a standard accessory with these wedge mounts can be fixed in any of these two holes while installing the machine, the bolt can be fixed in the hole which make sure that most of the wedge mount is covered by th leg/base of machine.
Application:- lathe machines, machining centers, milling machines, preccision grinding machines, drilling machines, turning centers, transfer lines etc.

Dynemech Mount Series DBP (Bolt On) DBP1-M
