PRODUCT DETAILS | TOOLBABA

Price :

₹ 828.00

GST inclusive

Model:

Quantity:

Add to Cart

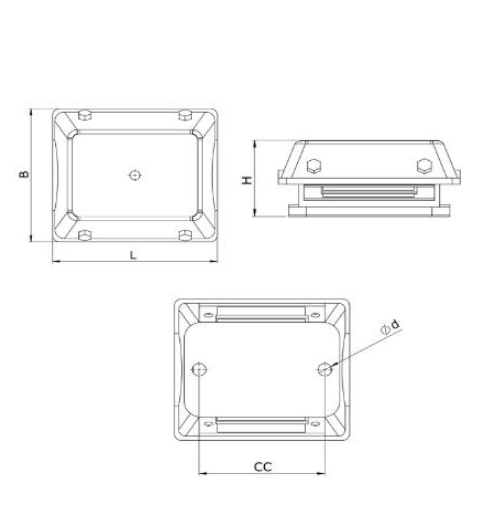

Model	Max load (kg)	L	B	H	Bolt	CC	dØ	Natural frequency at max load (Hz)
DGF1-E-UNM	300	128	128	73	M12	89	11	7.0

Dynemech flexifoot mounts, series DGF is well suited for machines requiring vibration damping in both compression and shear. an anti skid plate is provided in the base of mount to prevent machine walking these mounts can also anchored to the floor through the holes provided in the base for machines producing high unbalance forces.
Application:- Generators, blowers pumps, ID & FD fans, cooling tower etc.

Dynemech Flexifoot Mounts Series DGF1-E-UNM
