PRODUCT DETAILS | TOOLBABA

Price :

₹ 2378.00

GST inclusive

Model:

Quantity:

Add to Cart

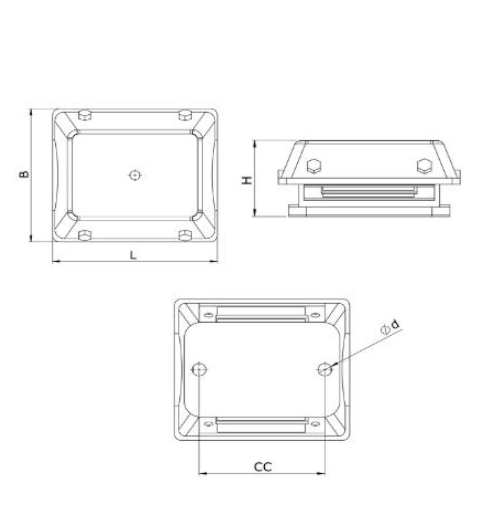

Model	Max. load (kg)	L	B	H	Bolt	CC	dØ	Natural frequency at max load (Hz)
DGF2-E-RTH	1575	230	205	107	M16	165	18	7.0

Dynemech flexifoot mounts, series DGF is well suited for machines requiring vibration damping in both compression and shear. an anti skid Plate is provided in the base of the moant to prevent machine walking, these mounts can also be anchored to the floor through the holes provided in the base for machines producing high unbalanes forces.
Application:- Generators, blower, pumps, ID & FD fans, cooling tower, etc.

Dynemech Flexifoot Mounts Series DGF
