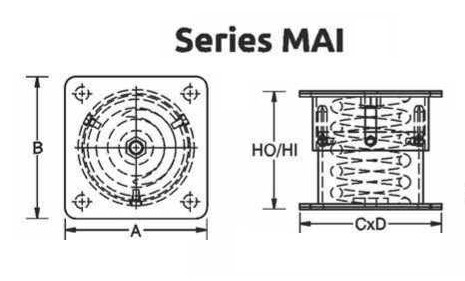

Model	Load kg	H o	Hl	Bolt size	Top plate (AxB)	Bottom plate (CxD)	CC	Natural frequency (Hz)
MAI-P5	250-900	82	91	M12	125x125	125x125	95	5.0-09

Dynemech is providing anti vibration solution to the india industry for the last 10years. we are the only company to provide almost all types of product range consists of stud mounts for very small machines to wedge mounts for precisionn machine tools, along with air spring for every low natural frequency vibration damping to spring isolators for heavy presses, hammers, gen sets etc. a spring isolator gives desired natural frequency to obtain phase difference in the frequencies for a rotating machines. viscous damping is an important features of an isolation system. in most cases viscous damping is required to limit excessive movement which could occur as a machine operates at a speed near to or coincidina with the resonent frequencies of the system. generally this problem arises during slow run up and run down of rotating machines and durina impact to each stroke in presses and hammers.
Very high vibration and shock isolation
Better structural safety
Improved health protection of workers-reduced machine operator fatigue and provide more congenial working environment.
Installation of senditive euipments are heavy machinery possible in the some work shop.
Shop floor flexibility maintains.
extended tool and machinery life.
No foundation is required for small and medium weight machines and reduced depth of foundation for very heavy machines.
Simple to install and reliable.

Dynamech Spring Isolators MAI-P5
