Bonmac Extra Light Duty Dog Chuck

Bonmac Extra Light Duty Dog Chuck

Price :
₹ 9030.00
GST inclusive
Model:
Quantity:
Add to Cart

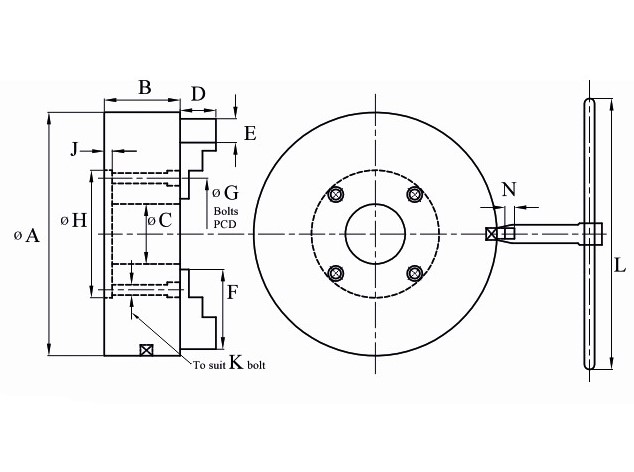

Size

A

B

C(Bore)

D

E

F

G(PCD)

H(H7)

J

K

L

N

Weight

4

101

35

25.4

16

12.0

35

76.2

88.9

2.5

M8

115

5

2.8

6

152

45

40.0

20

15.7

51

69.8

82.5

3.0

M8

165

7

4.6

8

203

50

45.0

24

19.0

63

82.5

95.25

3.5

M10

215

7.5

8.7



  • Chucks with slim bodies, specially designed for small lathes and grinding machines, where spindle accuracy is most important.
  • Bodies of 4" sizes are made out of steel
  • bodies are break resistant under normal working conditions.
  • Screw have stronger 29degree taper ACME thread which do not break easily
  • Screws, thrust bearing and operating key are manufactured out of alloy steel. same are properly heat treated to obtain long service life.
  • Operating key, mounting bolts, allen key, tap & inspection report is provided with each chuck.
