Specification: IS, DIN, ANSI & JIS
Every gauge carries a calibration certificate giving actual values
Auto reversal mechanism
Fitted with jewels and Swiss miniature ball bearings for smoother operation
Robust and highly sensitive gauge suitable for workshop use
Metric Gauges conform to IS 11498 and for the European market to DIN 2270
Inch Gauges conform to ASME B89.1.10M
Special dial Gauges for OEMs also manufactured on request
Complete spares and after sales service available
Integral dovetail offers flexibility and rigidity for mounting of the gauge
Metric & Inch gauges are supplied with 2 mm tungsten carbide ball stylus and 8 mm spigot assembly as standard supply
No additional accessories are offered when suffix A is added to the type number
Additional 1 mm carbide ball stylus, Height Gauge adaptor, spanner, universal clamp and 4 mm dovetail spigot assembly offered as additional accessories for gauges where type number is without suffix A

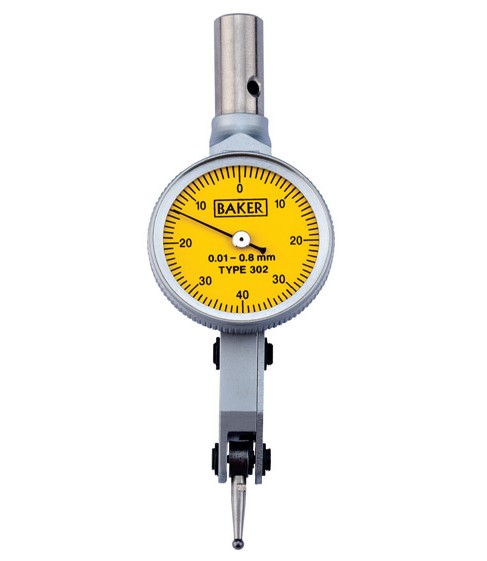

Baker Lever Type Dial Dial Gage
